V62/12623-01XE
ActiveENHANCED PRODUCT MIXED SIGNAL MICROCONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.
V62/12623-01XE
ActiveENHANCED PRODUCT MIXED SIGNAL MICROCONTROLLER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V62/12623-01XE |
|---|---|
| Core Processor | MSP430 |
| Core Size | 16-Bit |
| Mounting Type | Surface Mount |
| Number of I/O | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

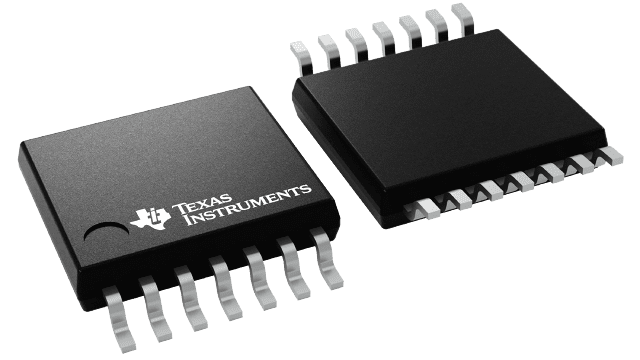

| Package / Case | 14-TSSOP |
| Package / Case [custom] | 0.173 " |
| Package / Case [custom] | 4.4 mm |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM |
| Program Memory Size | 4 KB |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Speed | 16 MHz |
| Supplier Device Package | 14-TSSOP |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 2.36 | |
| Texas Instruments | LARGE T&R | 1 | $ 3.82 | |
| 100 | $ 3.35 | |||
| 250 | $ 2.35 | |||
| 1000 | $ 1.89 | |||
Description
General part information
MSP430G2302-EP Series
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430G2x32 and MSP430G2x02 series of microcontrollers are ultra-low-power mixed signal microcontrollers with built-in 16-bit timers, and up to 16 I/O capacitive-touch enabled pins and built-in communication capability using the universal serial communication interface. The MSP430G2x32 series have a 10-bit A/D converter. For configuration details, see . Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
