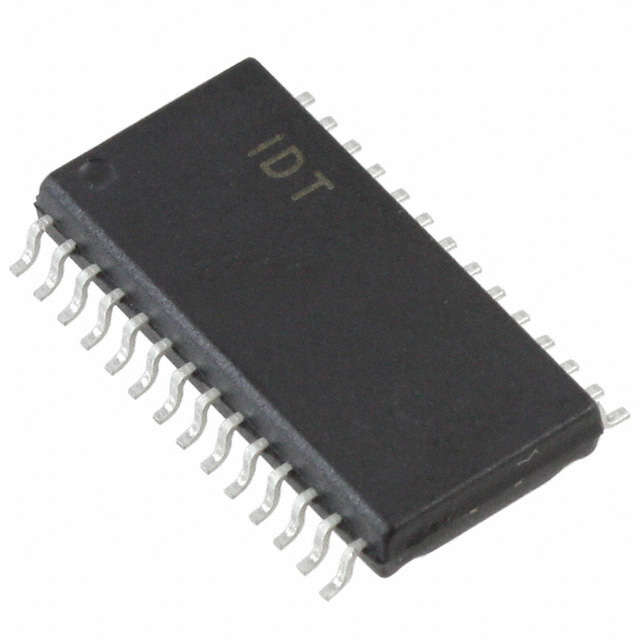

IDT7204L25SO

Obsolete

Renesas Electronics Corporation

IC FIFO ASYNC 4KX9 25NS 28SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IDT Suffixes

IDT7204L25SO

Obsolete

Renesas Electronics Corporation

IC FIFO ASYNC 4KX9 25NS 28SOIC

Deep-Dive with AI

DocumentsDatasheet IDT Suffixes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IDT7204L25SO

Access Time	25 ns
Bus Directional	Uni-Directional
Current - Supply (Max) [Max]	120 mA
Data Rate	28.5 MHz
Expansion Type	Width, Depth
Function	Asynchronous
FWFT Support	False
Memory Size	36 K
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	28-SOIC
Package / Case [x]	0.345 in
Package / Case [y]	8.77 mm
Programmable Flags Support	False
Retransmit Capability	True
Supplier Device Package	28-SOIC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

7204 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Function	Bus Directional	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Access Time	Expansion Type	Package / Case	Current - Supply (Max) [Max]	Mounting Type	Data Rate	Memory Size	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case
Renesas Electronics Corporation 7204L15JI8	85 °C	-40 °C	Asynchronous	Uni-Directional	32-PLCC (14x11.46)	4.5 V	5.5 V	15 ns	Depth Width	32-LCC (J-Lead)	120 mA	Surface Mount	40 MHz	36 K
Renesas Electronics Corporation IDT7204L25SO	70 °C	0 °C	Asynchronous	Uni-Directional	28-SOIC	4.5 V	5.5 V	25 ns	Depth Width	28-SOIC	120 mA	Surface Mount	28.5 MHz	36 K	0.345 in	8.77 mm
Renesas Electronics Corporation 7204L12TP	70 °C	0 °C	Asynchronous	Uni-Directional	28-PDIP	4.5 V	5.5 V	12 ns	Depth Width	28-DIP	120 mA	Through Hole	50 MHz	36 K			0.3 in	7.62 mm
Renesas Electronics Corporation 7204L12SOG	70 °C	0 °C	Asynchronous	Uni-Directional	28-SOIC	4.5 V	5.5 V	12 ns	Depth Width	28-SOIC	120 mA	Surface Mount	50 MHz	36 K	0.345 in	8.77 mm
Renesas Electronics Corporation 7204L12J8	70 °C	0 °C	Asynchronous	Uni-Directional	32-PLCC (14x11.46)	4.5 V	5.5 V	12 ns	Depth Width	32-LCC (J-Lead)	120 mA	Surface Mount	50 MHz	36 K
Renesas Electronics Corporation 7204L25J8	70 °C	0 °C	Asynchronous	Uni-Directional	32-PLCC (14x11.46)	4.5 V	5.5 V	25 ns	Depth Width	32-LCC (J-Lead)	120 mA	Surface Mount	28.5 MHz	36 K
Renesas Electronics Corporation IDT7204L15SO	70 °C	0 °C	Asynchronous	Uni-Directional	28-SOIC	4.5 V	5.5 V	15 ns	Depth Width	28-SOIC	120 mA	Surface Mount	40 MHz	36 K	0.345 in	8.77 mm
Renesas Electronics Corporation 7204L12JG8	70 °C	0 °C	Asynchronous	Uni-Directional	32-PLCC (14x11.46)	4.5 V	5.5 V	12 ns	Depth Width	32-LCC (J-Lead)	120 mA	Surface Mount	50 MHz	36 K
Renesas Electronics Corporation 7204L12SOG8	70 °C	0 °C	Asynchronous	Uni-Directional	28-SOIC	4.5 V	5.5 V	12 ns	Depth Width	28-SOIC	120 mA	Surface Mount	50 MHz	36 K	0.345 in	8.77 mm
Renesas Electronics Corporation IDT7204L25SO8	70 °C	0 °C	Asynchronous	Uni-Directional	28-SOIC	4.5 V	5.5 V	25 ns	Depth Width	28-SOIC	120 mA	Surface Mount	28.5 MHz	36 K	0.345 in	8.77 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

7204 Series

Asynchronous FIFO 36K (4K x 9) Uni-Directional 28.5MHz 25ns 28-SOIC

Documents

Technical documentation and resources

Datasheet

IDT Suffixes

Datasheet
