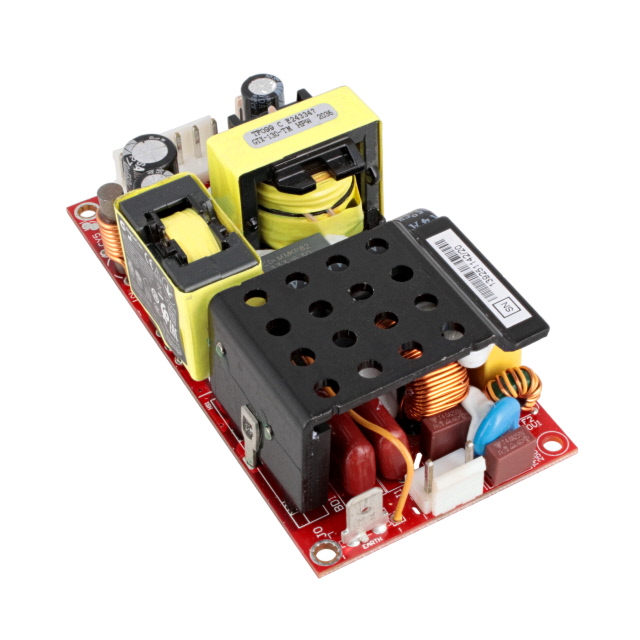

GTM962250P22554A-F

Active

GlobTek, Inc.

AC/DC CONVERTER 54V 225W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GTM962250P22554A-F

Active

GlobTek, Inc.

AC/DC CONVERTER 54V 225W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GTM962250P22554A-F

Applications	Household Appliances, ITE (Commercial), Medical
Current - Output 1	4.17 A
Efficiency	95 %
Features	Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-25 °C
Power (Watts)	225 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	1.18 in
Size / Dimension [z]	30 mm
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	54 V

GTM962250 Series

Part	Applications	Current - Output 1	Efficiency	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Standard Number	Voltage - Output 1	Features	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)
GlobTek, Inc. GTM962250P22519A-F	Household Appliances ITE (Commercial) Medical	11.84 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	19 V	Universal Input	Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	225 W
GlobTek, Inc. GTM962250P22554A-F	Household Appliances ITE (Commercial) Medical	4.17 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	54 V	Universal Input	Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	225 W
GlobTek, Inc. GTM962250P22518A-F	Household Appliances ITE (Commercial) Medical	12.5 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	18 V	Universal Input	Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	225 W
GlobTek, Inc. GTM962250P22516A-F	Household Appliances ITE (Commercial) Medical	14.06 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	16 V	Universal Input	Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	225 W
GlobTek, Inc. GTM962250P22528A-F	Household Appliances ITE (Commercial) Medical	5 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	28 V		Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	140 W 225 W
GlobTek, Inc. GTM962250P22530A-F	Household Appliances ITE (Commercial) Medical		95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	30 V	Universal Input	Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	225 W
GlobTek, Inc. GTM962250P22520A-F	Household Appliances ITE (Commercial) Medical	7 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	20 V		Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	140 W 225 W
GlobTek, Inc. GTM962250P22522A-F	Household Appliances ITE (Commercial) Medical	6.36 A	95 %	Chassis Mount	4000 V	80 ¯C	-20 °C	1	60335-1 60601-1 60950-1 62368-1	22 V		Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	140 W 225 W
GlobTek, Inc. GTM962250P22548A-F	Household Appliances ITE (Commercial) Medical	4.69 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	48 V	Universal Input	Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	225 W
GlobTek, Inc. GTM962250P22533.5A-F	Household Appliances ITE (Commercial) Medical	4.17 A	95 %	Chassis Mount	4000 V	80 ¯C	-25 °C	1	60335-1 60601-1 60950-1 62368-1	33.5 V		Open Frame	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	140 W 225 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 60.93

Description

General part information

GTM962250 Series

Open Frame AC DC Converters 1 Output 54V 85 ~ 264 VAC Input
