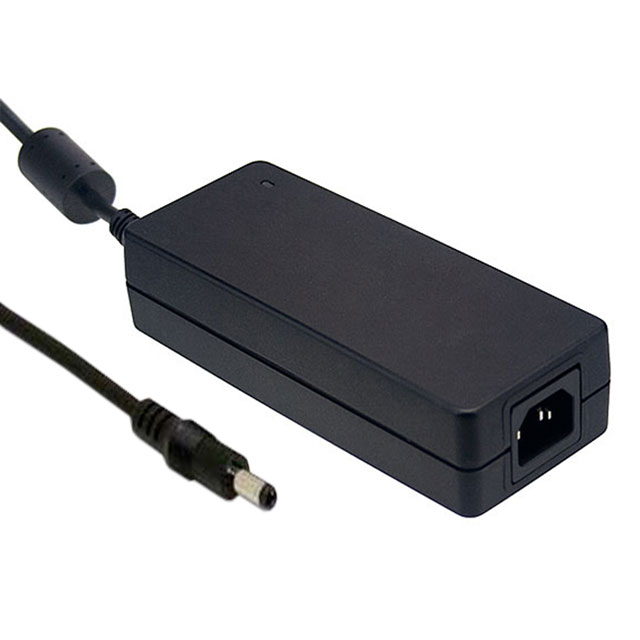

GST120A48-P1M
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 48V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GST120A48-P1M
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 48V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GST120A48-P1M |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, GS, CCC, cULus, EAC, SIRIM, BIS, CB, BSMI, RCM, KC, PSE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 120 W |
| Region Utilized | International |
| Size / Dimension [x] | 6.57 " |
| Size / Dimension [x] | 167 mm |
| Size / Dimension [y] | 67 mm |
| Size / Dimension [y] | 2.64 " |
| Size / Dimension [z] | 1.38 in |
| Size / Dimension [z] | 35 mm |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 42.90 | |
| 5 | $ 40.90 | |||
| 10 | $ 39.10 | |||
| 25 | $ 38.00 | |||
Description
General part information
GST120A48 Series
48V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
