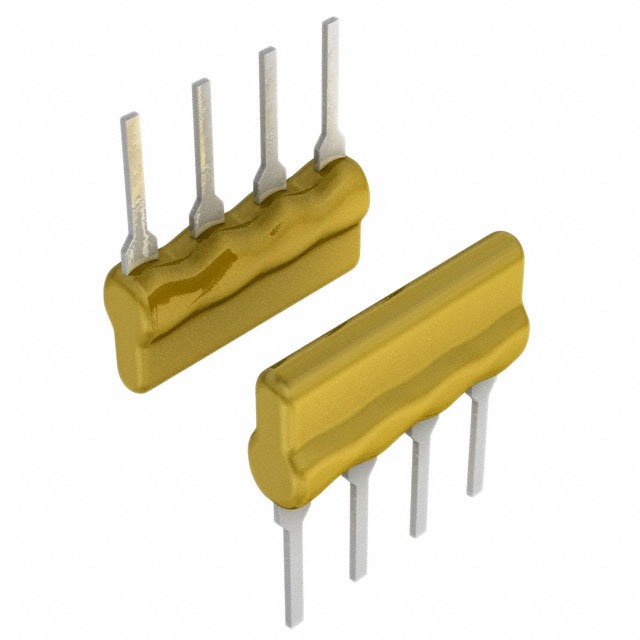

4604X-102-102
ObsoleteBourns Inc.
RES ARRAY 2 RES 1K OHM 4SIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4604X-102-102
ObsoleteBourns Inc.
RES ARRAY 2 RES 1K OHM 4SIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4604X-102-102 |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) [Max] [z] | 5.08 mm |
| Height - Seated (Max) [Max] [z] | 0.2 " |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Number of Resistors | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SIP |
| Power Per Element | 300 mW |
| Resistance (Ohms) | 1 kOhms |
| Size / Dimension [x] | 0.398 in |
| Size / Dimension [x] | 10.11 mm |
| Size / Dimension [y] | 2.49 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 4-SIP |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
4604X Series
| Part | Supplier Device Package | Temperature Coefficient | Number of Pins | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Power Per Element | Tolerance | Circuit Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Number of Resistors | Resistance (Ohms) | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 2 % | Isolated | 5.08 mm | 0.2 " | 2 | 4.7k | -55 °C | 125 °C | |
Bourns Inc. | 4-SIP | 250 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 5 % | Isolated | 5.08 mm | 0.2 " | 2 | -55 °C | 125 °C | 8.2 M | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 2 % | Isolated | 5.08 mm | 0.2 " | 2 | 22k | -55 °C | 125 °C | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 200 mW | 2 % | Bussed | 5.08 mm | 0.2 " | 3 | 47k | -55 °C | 125 °C | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 2 % | Isolated | 5.08 mm | 0.2 " | 2 | 1.8k | -55 °C | 125 °C | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 2 % | Isolated | 5.08 mm | 0.2 " | 2 | -55 °C | 125 °C | 1 kOhms | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 2 % | Isolated | 5.08 mm | 0.2 " | 2 | 15k | -55 °C | 125 °C | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 200 mW | 2 % | Bussed | 5.08 mm | 0.2 " | 3 | -55 °C | 125 °C | 56 Ohms | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 2 % | Isolated | 5.08 mm | 0.2 " | 2 | 150k | -55 °C | 125 °C | |
Bourns Inc. | 4-SIP | 100 ppm/°C | 4 | 0.398 in | 2.49 mm | 0.098 in | 10.11 mm | 4-SIP | Through Hole | 300 mW | 2 % | Isolated | 5.08 mm | 0.2 " | 2 | -55 °C | 125 °C | 510 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
4604X Series
1k Ohm ±2% 300mW Power Per Element Isolated 2 Resistor Network/Array ±100ppm/°C 4-SIP
