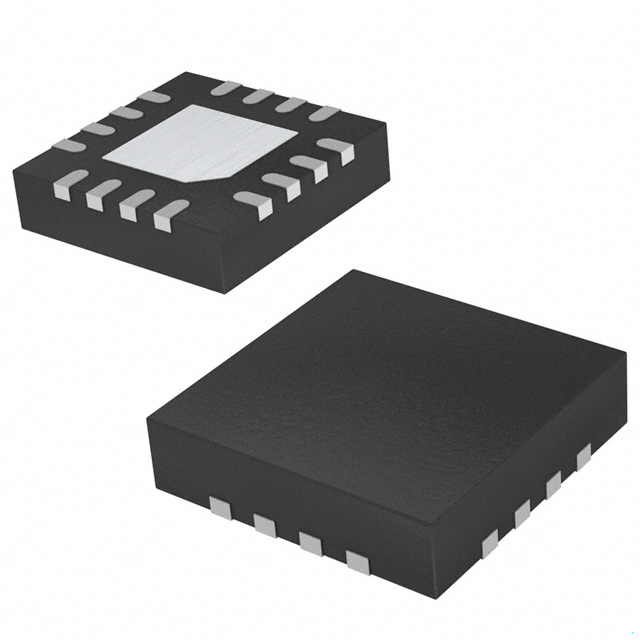

BD1604MVV-E2
NRNDRohm Semiconductor
IC LED DRIVER RGLTR 30MA 16SQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BD1604MVV-E2
NRNDRohm Semiconductor
IC LED DRIVER RGLTR 30MA 16SQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BD1604MVV-E2 |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 30 mA |
| Frequency | 1 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | SQFN016V4040 |
| Topology | Switched Capacitor (Charge Pump) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.32 | |
| 10 | $ 2.09 | |||
| 25 | $ 1.97 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.58 | |||
| 500 | $ 1.38 | |||
| 1000 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 2.32 | ||
| 10 | $ 2.09 | |||
| 25 | $ 1.97 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.58 | |||
| 500 | $ 1.38 | |||
| 1000 | $ 1.14 | |||
| Tape & Reel (TR) | 2500 | $ 0.97 | ||
Description
General part information
BD1604MUV Series
BD1604MUV and BD1604MVV is a 4 white LED driver for small LCD backlight. At the charge pump type, the number of external devices is minimized.
