EYW09238024BE-12

Active

YS TECH USA

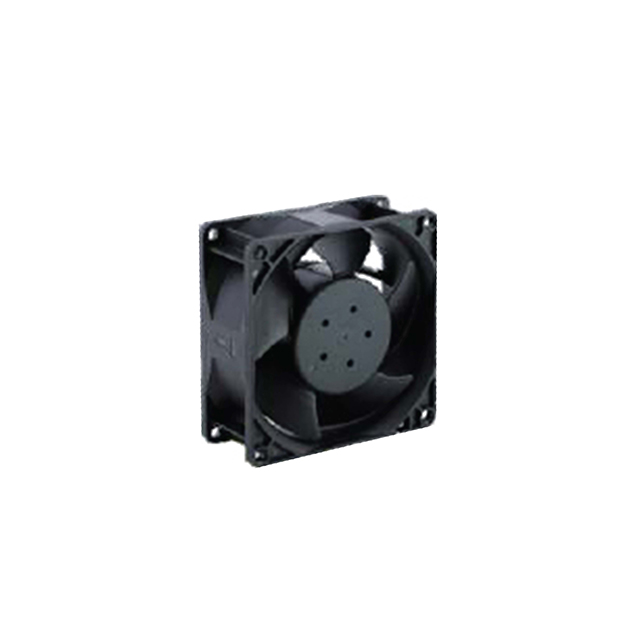

FAN AXIAL 92X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 92X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	EYW09238024BE-12

Air Flow	193 CFM
Air Flow	5.4 mł/min
Bearing Type	Ball
Current Rating (Amps)	2.2 A
Fan Type	Tubeaxial
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	68.5 dB(A)
Power (Watts)	52.8 W
RPM	13500 RPM
Static Pressure	1016.9 Pa
Static Pressure	4.083 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Width [y]	38 mm

Part	Voltage - Rated	Current Rating (Amps)	Bearing Type	Lifetime @ Temp.	Width [y]	RPM	Material - Blade	Power (Watts)	Air Flow	Air Flow	Static Pressure	Static Pressure	Noise	Termination	Voltage Range [Min]	Voltage Range [Max]	Fan Type
YS TECH USA EYW09238024BE-12	24 VDC	2.2 A	Ball	65000 Hrs	38 mm	13500 RPM	Polybutylene Terephthalate (PBT)	52.8 W	193 CFM	5.4 mł/min	1016.9 Pa	4.083 in H2O	68.5 dB(A)	2 Wire Leads	12 VDC	28 VDC	Tubeaxial
YS TECH USA EYW09238024BH-EAK-12	24 VDC	0.53 A	Ball	75000 Hrs	38 mm	8000 RPM	Polybutylene Terephthalate (PBT)	12.72 W	113.6 CFM	3.18 m³/min	473.3 Pa	1.9 in H2O	57.5 dB	2 Wire Leads	12 VDC	28 VDC	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 193.0 CFM (5.40m³/min) 2 Wire Leads
