FRN0.25TW1000

Active

Techflex

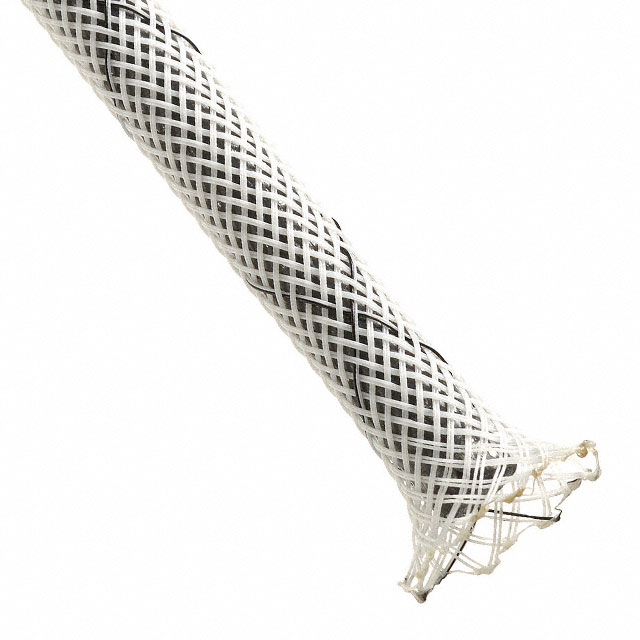

EXPAND SLEEV 1/4"X1000' WHT/BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEV 1/4"X1000' WHT/BLK

Technical Specifications

Parameters and characteristics for this part

Specification	FRN0.25TW1000

Abrasion Protection	Abrasion and Cut Resistant
Color	White, Black
Diameter - Inside, Expanded [diameter]	0.438 in
Diameter - Inside, Expanded [diameter]	11.13 mm
Features	Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant
Length	1000 ft
Length	304.8 m
Liquid Protection	Gasoline Resistant
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating	Color	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Liquid Protection	Abrasion Protection	Length	Length	Type Attributes	Heat Protection	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]
Techflex FRN0.25TW1000	0.025 in	0.64 mm	UL VW-1	Black White	Sleeve	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Gasoline Resistant	Abrasion and Cut Resistant	1000 ft	304.8 m	Expandable	Flame Retardant	Chemical Resistant Clean Cut	0.438 in	11.13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 1000' (304.80m) White, Black

Technical documentation and resources
