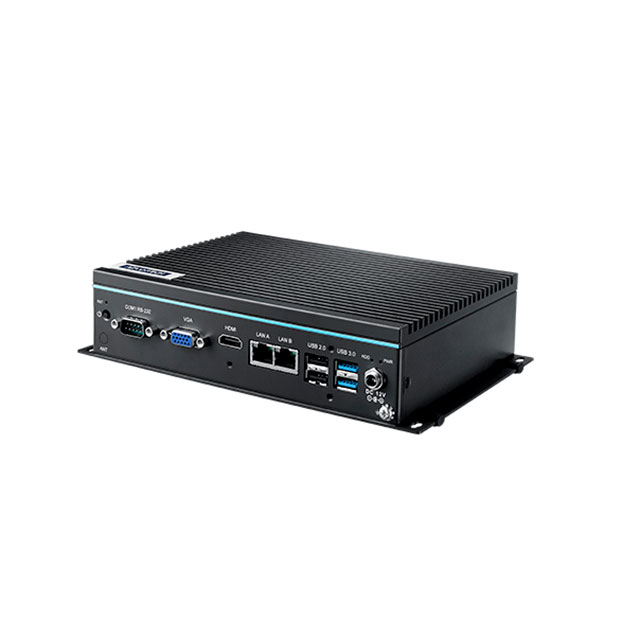

UNO-247-J1N1AE

Active

Advantech Corp

SBC 1.5GHZ 1 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1.5GHZ 1 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	UNO-247-J1N1AE

Core Processor	Intel Celeron J3455
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	mPCIe, SIM, M.2
Form Factor	Regular Size
Number of Cores	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Power (Watts)	31 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	6
Size / Dimension [x]	7.87 in
Size / Dimension [x]	199.89 mm
Size / Dimension [y]	5.51 "
Size / Dimension [y]	139.95 mm
Speed	1.5 GHz
Storage Interface	mSATA, 2.5" HDD SATA
USB	2, 2
Video Outputs	DVI, HDMI
Watchdog Timer	True

Part	Ethernet	Video Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Form Factor	Expansion Site/Bus	Watchdog Timer	Speed	RS-232 (422, 485)	Number of Cores	Storage Interface	USB	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	Power (Watts)	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]
Advantech Corp UNO-247-J1N1AE	10 Mbps 100 Mbps 1000 Mbps	DVI HDMI	5.51 "	7.87 in	199.89 mm	139.95 mm	Regular Size	M.2 mPCIe SIM		1.5 GHz	6	1	2.5" HDD SATA mSATA	2 2	-20 C	60 °C	Intel Celeron J3455	31 W	8 GB	0 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 608.00

General part information

Single Board Computer 1.5GHz 1 Core 8GB/0GB RAM Intel Celeron J3455

Technical documentation and resources

No documents available
