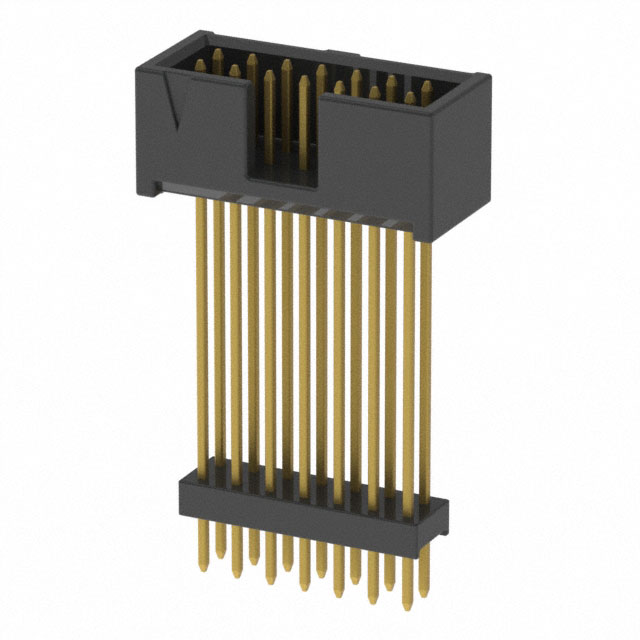

ZSS-107-09-G-D-1250

Active

Samtec Inc.

CONN HDR .100" 14POS

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-107-09-G-D-1250

Active

Samtec Inc.

CONN HDR .100" 14POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-107-09-G-D-1250

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.18 in
Contact Length - Post	4.57 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	1.25 in
Insulation Height	31.75 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-107 Series

...

Part	Number of Rows	Contact Finish - Post	Style	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Number of Positions	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Shape	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Shrouding	Current Rating (Amps)	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. ZSS-107-03-L-D-615
Samtec Inc. ZSS-107-02-G-D-605
Samtec Inc. ZSS-107-03-L-D-663	2	Tin	Board to Board Cable	6.35 mm	0.25 in	-55 °C	125 °C	Push-Pull	Keying Slot	14	Solder	UL94 V-0	0.1 in	2.54 mm	4.24 mm	0.167 in	Black	0.83 in	21.08 mm	Male Pin	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	Elevated Header	Square	Through Hole	All	16.85 mm	0.663 in	Shrouded - 4 Wall	3 A	Phosphor Bronze	Polyester Glass Filled
Samtec Inc. ZSS-107-02-T-D-580-LL
Samtec Inc. ZSS-107-04-H-D-750	2	Gold	Board to Board Cable	6.35 mm	0.25 in	-55 °C	125 °C	Push-Pull	Keying Slot	14	Solder	UL94 V-0	0.1 in	2.54 mm			Black	0.93 in	23.62 mm	Male Pin	2.54 mm	0.1 in	Gold	30 Áin	0.76 Ám	Elevated Header	Square	Through Hole	All	19.05 mm	0.75 in	Shrouded - 4 Wall	3 A	Phosphor Bronze	Polyester Glass Filled	3 µin	0.076 µm	0.18 in	4.57 mm
Samtec Inc. ZSS-107-05-L-D-750	2	Tin	Board to Board Cable	6.35 mm	0.25 in	-55 °C	125 °C	Push-Pull	Keying Slot	14	Solder	UL94 V-0	0.1 in	2.54 mm			Black	1.03 in	26.16 mm	Male Pin	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	Elevated Header	Square	Through Hole	All	19.05 mm	0.75 in	Shrouded - 4 Wall	3 A	Phosphor Bronze	Polyester Glass Filled
Samtec Inc. ZSS-107-05-S-D-856
Samtec Inc. ZSS-107-09-G-D-1250	2	Gold	Board to Board Cable	6.35 mm	0.25 in	-55 °C	125 °C	Push-Pull	Keying Slot	14	Solder	UL94 V-0	0.1 in	2.54 mm			Black			Male Pin	2.54 mm	0.1 in	Gold	10 çin	0.25 çm	Elevated Header	Square	Through Hole	All	31.75 mm	1.25 in	Shrouded - 4 Wall	3 A	Phosphor Bronze	Polyester Glass Filled	3 µin	0.076 µm	0.18 in	4.57 mm
Samtec Inc. ZSS-107-03-T-D-640	2	Tin	Board to Board Cable	6.35 mm	0.25 in	-55 °C	105 ░C	Push-Pull	Keying Slot	14	Solder	UL94 V-0	0.1 in	2.54 mm			Black	0.83 in	21.08 mm	Male Pin	2.54 mm	0.1 in				Elevated Header	Square	Through Hole	All	16.26 mm	0.64 in	Shrouded - 4 Wall	3 A	Phosphor Bronze	Polyester Glass Filled			0.19 in	4.83 mm
Samtec Inc. ZSS-107-04-L-D-740

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.64

Description

General part information

ZSS-107 Series

Connector Header Through Hole 14 position 0.100" (2.54mm)
