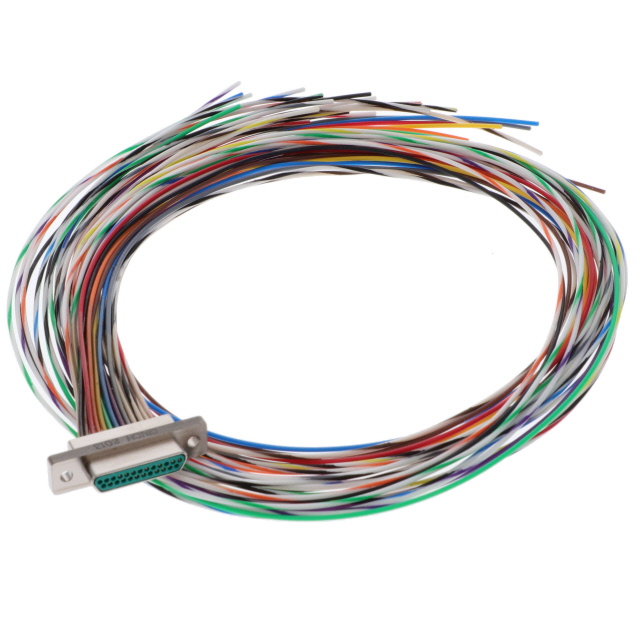

DCCM25P6E5-18.0BN

Active

Cinch Connectivity Solutions Trompeter

CABLE ASSY D-MIC-D 25P 457.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DCCM25P6E5-18.0BN

Active

Cinch Connectivity Solutions Trompeter

CABLE ASSY D-MIC-D 25P 457.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM25P6E5-18.0BN

1st Connector	Plug, Male Pins
2nd Connector	Individual Wire Leads
Color	Multiple, Individual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Type	D-Type, Micro-D

DCCM25 Series

Part	Contact Finish	Length [x]	Length [x]	Color	Type	Contact Finish Thickness	Contact Finish Thickness	2nd Connector	1st Connector	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Flange Feature	Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Features	Contact Material	Connector Style	Number of Rows	Material Flammability Rating	Dielectric Material	Connector Type	Mounting Type
Cinch Connectivity Solutions Trompeter DCCM25P6E5-18.0BN	Gold	457.2 mm	1.5 ft	Individual Multiple	D-Type Micro-D	50 µin	1.27 µm	Individual Wire Leads	Plug Male Pins
Cinch Connectivity Solutions Trompeter DCCM25SBSP	Gold					50 µin	1.27 µm			0.043	0.05	Aluminum Alloy Yellow Chromate Plated Cadmium	Female Screwlock Mating Side	Signal	3 A	135 °C	-55 °C	Solder	Shielded	Copper Alloy	D-Type Micro-D	2	UL94 V-0	Diallyl Phthalate (DAP) Glass Filled	Receptacle Female Sockets	Through Hole
Cinch Connectivity Solutions Trompeter DCCM25SSB	Gold					50 µin	1.27 µm			0.043	0.05	Aluminum Alloy Yellow Chromate Plated Cadmium		Signal	3 A	135 °C	-55 °C		Shielded	Copper Alloy	D-Type Micro-D	2	UL94 V-0	Diallyl Phthalate (DAP) Glass Filled	Receptacle Female Sockets
Cinch Connectivity Solutions Trompeter DCCM25PBSPN	Gold					50 µin	1.27 µm			0.043	0.05	Aluminum Alloy Electroless Nickel Plated	Female Screwlock Mating Side	Signal	3 A	135 °C	-55 °C	Solder	Shielded	Copper Alloy	D-Type Micro-D	2	UL94 V-0	Diallyl Phthalate (DAP) Glass Filled	Male Pins Plug	Through Hole
Cinch Connectivity Solutions Trompeter DCCM25SBSPN	Gold					50 µin	1.27 µm			0.043	0.05	Aluminum Alloy Electroless Nickel Plated	Female Screwlock Mating Side	Signal	3 A	135 °C	-55 °C	Solder	Shielded	Copper Alloy	D-Type Micro-D	2	UL94 V-0	Diallyl Phthalate (DAP) Glass Filled	Receptacle Female Sockets	Through Hole
Cinch Connectivity Solutions Trompeter DCCM25PSB	Gold					50 µin	1.27 µm			0.043	0.05	Aluminum Alloy Yellow Chromate Plated Cadmium		Signal	3 A	135 °C	-55 °C		Shielded	Copper Alloy	D-Type Micro-D	2	UL94 V-0	Diallyl Phthalate (DAP) Glass Filled	Male Pins Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 145.93
		10	$ 113.88
		25	$ 103.75
		50	$ 96.93
		100	$ 90.76

Description

General part information

DCCM25 Series

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads

Documents

Technical documentation and resources

No documents available
