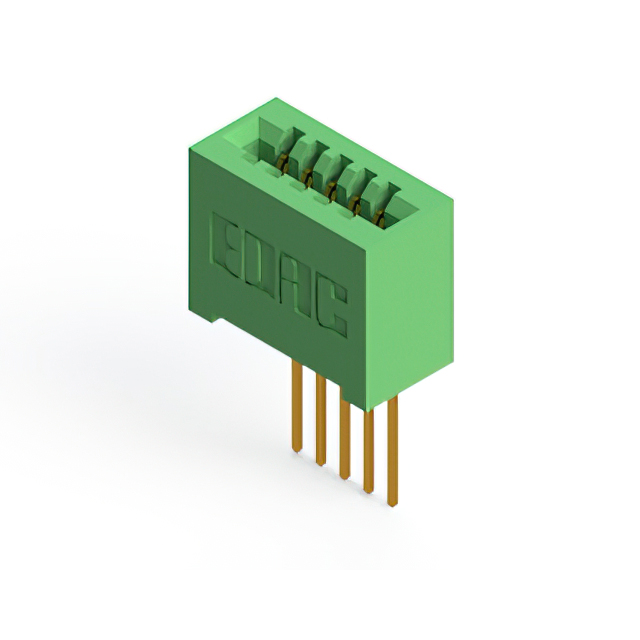

342-005-540-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 5POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-005-540-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 5POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-005-540-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
342-005 Series
| Part | Contact Material | Read Out | Pitch [x] | Pitch [x] | Contact Finish | Number of Rows | Termination | Material - Insulation | Color | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Wire Wrap | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Wire Wrap | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 | ||
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Solder | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 | |||
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Solder | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 | ||
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Wire Wrap | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 | |||
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Wire Wrap | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Solder Eyelet(s) | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 | ||
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Solder | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 |
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Wire Wrap | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 | ||
EDAC Inc. | Copper Alloy | Single | 2.54 mm | 0.1 in | Gold | 1 | Wire Wrap | Polyester Thermoplastic | Green | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Female | 5 | 10 Áin | 0.25 Ám | Through Hole | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.82 | |
Description
General part information
342-005 Series
5 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
