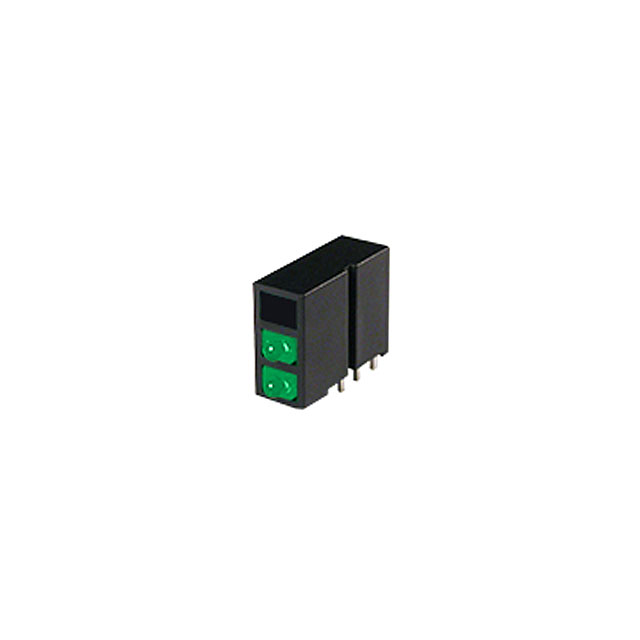

WP406A10XHA/X2GD
ActiveKingbright
LED CBI 1.8MM 3X1 GREEN RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP406A10XHA/X2GD
ActiveKingbright
LED CBI 1.8MM 3X1 GREEN RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP406A10XHA/X2GD |
|---|---|
| Color | Green (x 3) |
| Configuration | 3 High |
| Current | 25 mA |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 12 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 70 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 568 nm |
WP406 Series
| Part | Millicandela Rating | Configuration | Lens Size [diameter] | Viewing Angle | Wavelength - Peak | Current | Lens Type | Color | Lens Style | Mounting Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
Kingbright | 12 mcd | 3 High | 1.8 mm | 70 ° | 568 nm | 25 mA | Diffused Tinted | Green (x 3) | Round with Domed Top | Through Hole Right Angle | 2 V |
Kingbright | 12 mcd | 3 High | 1.8 mm | 70 ° | 565 nm | 140 mA | Diffused | Green (x 3) | Round with Domed Top | Through Hole Right Angle | |
Kingbright | 8 mcd | 3 High | 1.8 mm | 70 ° | 627 nm | 160 mA | Diffused | Red | Round with Domed Top | Through Hole Right Angle | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.84 | |
| 10 | $ 1.17 | |||
Description
General part information
WP406 Series
LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green (x 3) Diffused, Tinted 2V 25mA Round with Domed Top 1.80mm Dia Through Hole, Right Angle
