CS8-12IO2

Obsolete

IXYS

SCR 1.2KV 25A TO64

Search across all available documentation for this part.

Obsolete

IXYS

SCR 1.2KV 25A TO64

Technical Specifications

Parameters and characteristics for this part

Specification	CS8-12IO2

Current - Gate Trigger (Igt) (Max) [Max]	30 mA
Current - Hold (Ih) (Max) [Max]	80 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	270 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	250 A
Current - Off State (Max) [Max]	3 mA
Current - On State (It (AV)) (Max) [Max]	16 A
Current - On State (It (RMS)) (Max) [Max]	25 A
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-64-3, TO-208AB, Stud
SCR Type	Standard Recovery
Supplier Device Package	TO-64
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.2 kV
Voltage - On State (Vtm) (Max) [Max]	1.6 V

Part	Current - On State (It (AV)) (Max) [Max]	Current - Off State (Max) [Max]	Supplier Device Package	Voltage - Off State	SCR Type	Mounting Type	Voltage - Gate Trigger (Vgt) (Max)	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - On State (It (RMS)) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]
IXYS CS8-12IO2	16 A	3 mA	TO-64	1.2 kV	Standard Recovery	Chassis Stud Mount	2.5 V	80 mA	125 °C	-40 °C	30 mA	Stud TO-208AB TO-64-3	250 A	270 A	25 A	1.6 V
IXYS CS8-08IO2	16 A	3 mA	TO-64	800 V	Standard Recovery	Chassis Stud Mount	2.5 V	80 mA	125 °C	-40 °C	30 mA	Stud TO-208AB TO-64-3	250 A	270 A	25 A	1.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

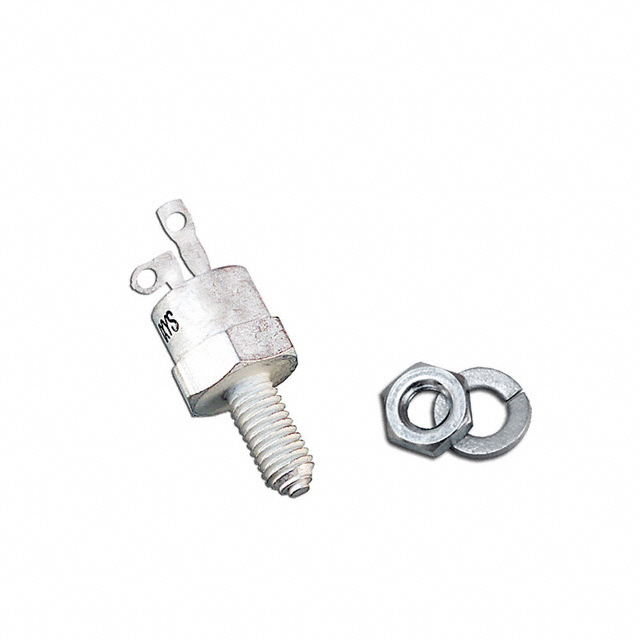

SCR 1.2 kV 25 A Standard Recovery Chassis, Stud Mount TO-64
