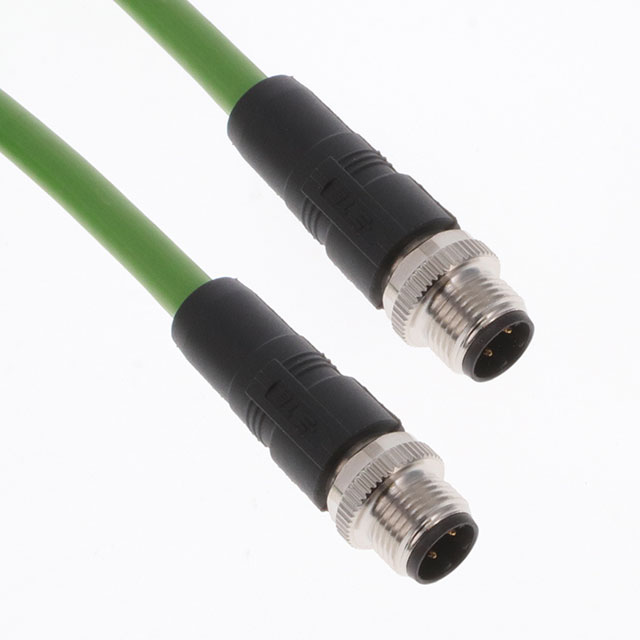

TAD14747101-001
ActiveTE Connectivity Raychem Cable Protection
CIRC CBL 4POS RCPT TO RCPT 1.64'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TAD14747101-001
ActiveTE Connectivity Raychem Cable Protection
CIRC CBL 4POS RCPT TO RCPT 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAD14747101-001 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | D |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Orientation | D |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Receptacle |
| Assembly Configuration | Standard |
| Cable Material | Flame Retardant Non-Corrosive (FRNC) |
| Cable Type | Round |
| Color | Green |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft |
| Length [x] | 500 mm |
| Shielding | Shielded |
| Usage | Industrial Environments, Cat5e |
TAD1474 Series
| Part | 2nd Connector Type | 1st Connector Gender | Cable Type | 1st Connector Type | Color | Length [x] | Length [x] | Assembly Configuration | 1st Connector Orientation | 1st Connector Number of Positions Loaded | 1st Connector Number of Positions | Usage | Ingress Protection | Cable Material | 2nd Connector Number of Positions | 1st Connector Shell Size - Insert | 1st Connector Mounting Type | 2nd Connector Orientation | Shielding | 2nd Connector Number of Positions Loaded | 2nd Connector Mounting Type | 2nd Connector Shell Size - Insert | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | 2 m | 6.56 ft | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Polyvinyl Chloride (PVC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Polyvinyl Chloride (PVC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | ||||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | 500 mm | 1.64 ft | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Flame Retardant Non-Corrosive (FRNC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | 30 m | 98.4 ft | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Flame Retardant Non-Corrosive (FRNC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | 2 m | 6.56 ft | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Flame Retardant Non-Corrosive (FRNC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Polyurethane (PUR) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | 25 m | 82 ft | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | 500 mm | 1.64 ft | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Polyvinyl Chloride (PVC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | 1 m | 3.28 ft | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Flame Retardant Non-Corrosive (FRNC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Red | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Polyvinyl Chloride (PVC) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 | 25 m | 82 ft | ||
TE Connectivity Raychem Cable Protection | Receptacle | Male Pins | Round | Receptacle | Green | Standard | D | All | 4 | Cat5e Industrial Environments | IP67 - Dust Tight Waterproof | Polyurethane (PUR) | 4 | M12 | Free Hanging (In-Line) | D | Shielded | All | Free Hanging (In-Line) | M12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 200 | $ 22.22 | |
Description
General part information
TAD1474 Series
Circular Cable Assembly Shielded 1.64' (500.00mm)
