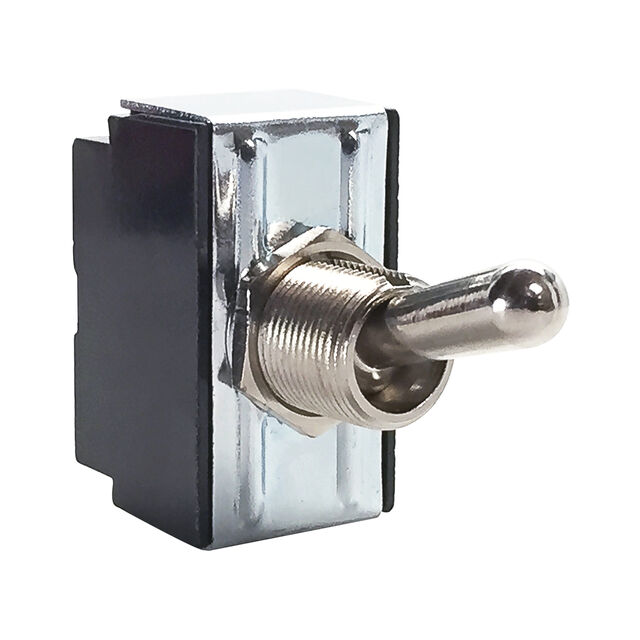

2GK721-D-3B-B

Active

Carling Technologies

TOGGLE SWITCH, DPST, ON-OFF, MAINTAINED, QUICK CONNECT TERMINAL, TOGGLE ACTUATOR, PANEL MOUNT

Search across all available documentation for this part.

Active

Carling Technologies

TOGGLE SWITCH, DPST, ON-OFF, MAINTAINED, QUICK CONNECT TERMINAL, TOGGLE ACTUATOR, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	2GK721-D-3B-B

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPST
Current Rating (Amps)	20 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Voltage Rating - AC	Illumination	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Max]	Bushing Thread	Termination Style	Circuit	Electrical Life	Actuator Type	Actuator Length [x]
Carling Technologies 2GK721-D-3B-B	20 A	125 V	Non-Illuminated	12.7 mm	On-Off	85 °C	15/32-32	Quick Connect - 0.250" (6.3mm)	DPST	50000 Cycles	Standard Round	17.45 mm
Carling Technologies 2GK721-D-2W-B	20 A	125 V	Non-Illuminated	12.7 mm	On-Off	85 °C	15/32-32	Quick Connect - 0.250" (6.3mm)	DPST	50000 Cycles	Standard Round
Carling Technologies 2GK721-D-4B-B/2HEX	20 A	125 V	Non-Illuminated	12.7 mm	On-Off	85 °C	15/32-32	Quick Connect - 0.250" (6.3mm)	DPST	50000 Cycles	Paddle	17.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.34

General part information

Toggle Switch DPST Panel Mount
