DF3-3P-2DS(01)

Active

Hirose Electric USA, Inc.

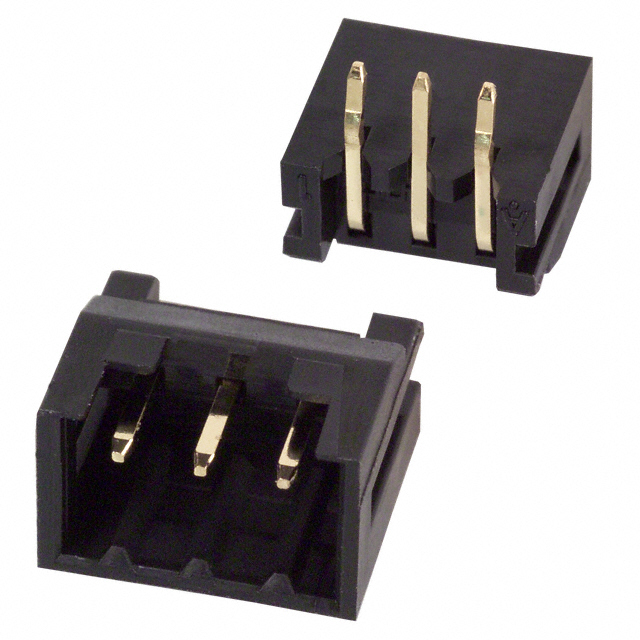

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF3-3P-2DS(01) Spec

DF3-3P-2DS(01)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 3 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet DF3-3P-2DS(01) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-3P-2DS(01)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder, Press-Fit

DF3-3 Series

Part	Note	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Mounting Type	Contact Type	Connector Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Current Rating (Amps)	Style	Fastening Type	Contact Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Contact Finish - Post	Features	Overall Contact Length [x]	Overall Contact Length [x]	Wire Type	Cable Termination	Wire Gauge	Contact Finish
Hirose Electric USA, Inc. DF3-3S-2C	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Female Socket	Receptacle	Crimp	Black	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-3P-2DS(01)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole Right Angle	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm	Gold	All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall	0.203 Ám	8 Áin	0.122 in	3.1 mm	Press-Fit Solder
Hirose Electric USA, Inc. DF3-3P-2DS		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole Right Angle	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm		All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall			0.122 in	3.1 mm	Press-Fit Solder	Tin
Hirose Electric USA, Inc. DF3-3P-2H(20)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Surface Mount Right Angle	Male Pin	Header					Beige	UL94 V-0	0.22 in	5.6 mm				All	0.079 in	2 mm	Circular	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall					Solder	Tin	Board Guide
Hirose Electric USA, Inc. DF3-3P-2DSA(30)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm	Gold	All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall			0.122 in	3.1 mm	Press-Fit Solder			0.299 in	7.6 mm
Hirose Electric USA, Inc. DF3-3S-2C(10)	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Female Socket	Receptacle	Crimp	White	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-3EP-2C(20)	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Plug	Crimp	Black	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-3P-2DSA(01)		1	105 ░C	-55 °C	Nylon Polyamide (PA)	Through Hole	Male Pin	Header					Black	UL94 V-0	0.197 in	5 mm	0.114 in	2.9 mm	Gold	All	0.079 in	2 mm	Square	3 A	Board to Board Cable	Push-Pull	Brass	Shrouded - 4 Wall	0.203 Ám	8 Áin	0.122 in	3.1 mm	Press-Fit Solder			0.299 in	7.6 mm
Hirose Electric USA, Inc. DF3-3EP-2C	Contacts Not Included	1	105 ░C	-55 °C	Nylon Polyamide (PA)	Free Hanging (In-Line)	Male Pin	Plug	Crimp	Black	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-3S-2R26(05)		1				Free Hanging (In-Line)	Female Socket	Receptacle		Black	0.079 in	2 mm																							Closed End			Discrete	IDC	26 AWG	Tin
