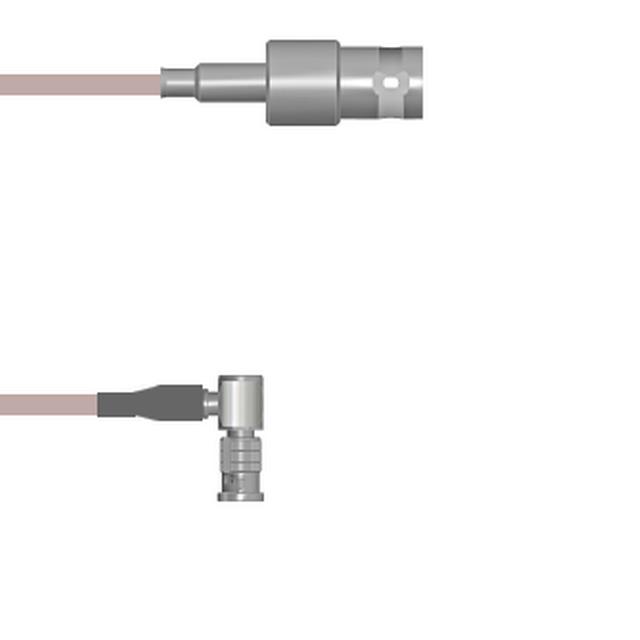

Q-0305G00051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0305G00051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0305G00051.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	HD-BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0305G0 Series

Part	1st Connector Mounting Type	2nd Contact Gender	Frequency - Max [Max]	Cable Type	2nd Connector Mounting Type	Style	Length	Length	Length	1st Contact Gender	Color	Features	Overall Impedance	2nd Connector	1st Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-0305G00052.5M	Free Hanging (In-Line)	Male	4 GHz	RG-316	Free Hanging (In-Line)	BNC to HD-BNC	8.2 '	98.4 in	2.5 m	Female	Copper	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G00051.5M	Free Hanging (In-Line)	Male	4 GHz	RG-316	Free Hanging (In-Line)	BNC to HD-BNC	4.9 ft	59.1 in	1.5 m	Female	Copper	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G0005001M	Free Hanging (In-Line)	Male	4 GHz	RG-316	Free Hanging (In-Line)	BNC to HD-BNC	3.3 ft	39.4 in	1 m	Female	Copper	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G00050.5M	Free Hanging (In-Line)	Male	4 GHz	RG-316	Free Hanging (In-Line)	BNC to HD-BNC		19.69 "	50 cm	Female	Copper	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G0003009i	Free Hanging (In-Line)	Male	4 GHz	RG-174	Free Hanging (In-Line)	BNC to HD-BNC		9 "	228.6 mm	Female	Black	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G0005012i	Free Hanging (In-Line)	Male	4 GHz	RG-316	Free Hanging (In-Line)	BNC to HD-BNC		12 "	304.8 mm	Female	Copper	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G0005.75M	Free Hanging (In-Line)	Male	4 GHz	RG-316	Free Hanging (In-Line)	BNC to HD-BNC		29.53 "	750 mm	Female	Copper	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G0003.25M	Free Hanging (In-Line)	Male	4 GHz	RG-174	Free Hanging (In-Line)	BNC to HD-BNC				Female	Black	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack	9.843 "	250 mm
Amphenol Custom Cable Q-0305G0003048i	Free Hanging (In-Line)	Male	4 GHz	RG-174	Free Hanging (In-Line)	BNC to HD-BNC	4 ft	48 in	1200 mm	Female	Black	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack
Amphenol Custom Cable Q-0305G0003108i	Free Hanging (In-Line)	Male	4 GHz	RG-174	Free Hanging (In-Line)	BNC to HD-BNC	9 ft	108 in	2.7 m	Female	Black	Shielded	50 Ohms	HD-BNC Plug Right Angle	BNC Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.25
		25	$ 83.16
		50	$ 77.07
		100	$ 71.85
		250	$ 67.50

Description

General part information

Q-0305G0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
