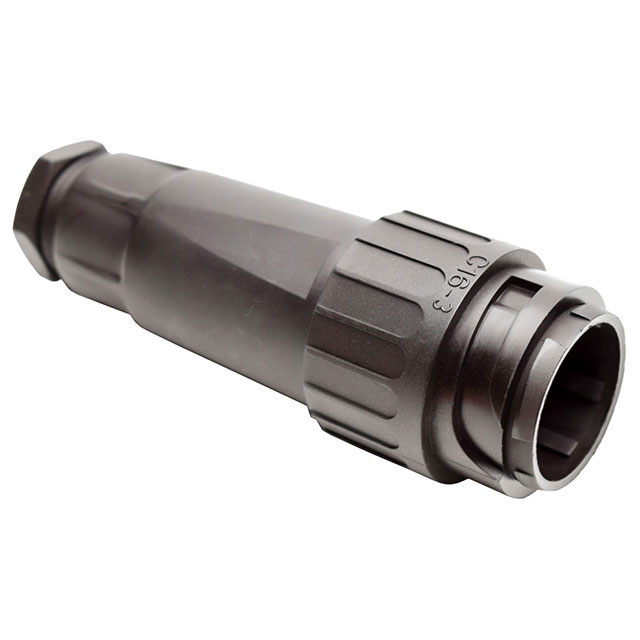

C01610I0170031

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 18POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 18POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C01610I0170031

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	17, 18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Male Pins

Part	Housing Color	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shielding	Ingress Protection	Type	Note	Shell Material	Shell Size - Insert	Material Flammability Rating	Number of Positions	Includes	Contact Size	Contact Type	Mounting Type	Contact Shape	Fastening Type	Features
Amphenol Tuchel Industrial C01610I0170031	Black	N	125 °C	-40 °C	Plug Housing	Unshielded	IP65 - Dust Tight Water Resistant	For Male Pins	Contacts Not Included	Polyamide (PA66) Nylon 6/6	1	UL94 V-0	17 18	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws	1.5 mm	Crimp	Free Hanging (In-Line)	Circular	Bayonet Lock	Backshell Cable Clamp Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 (17 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
