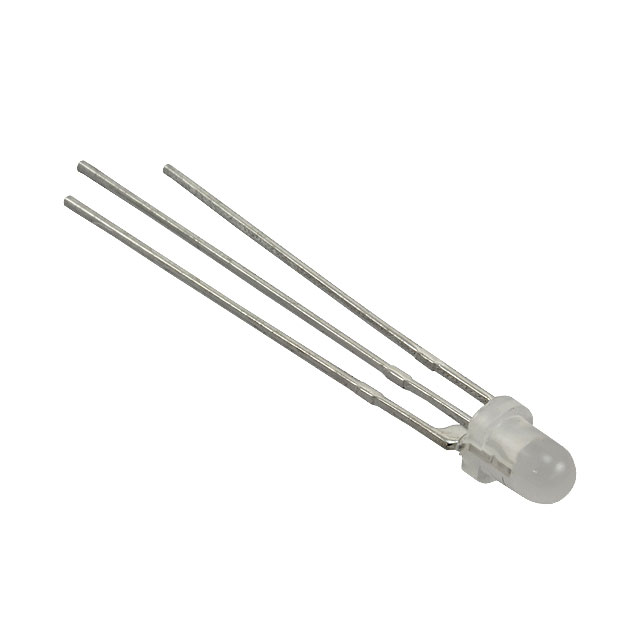

WP3VGYW

Active

Kingbright

LED GRN/YLW DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Kingbright

LED GRN/YLW DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max]	Supplier Device Package	Mounting Type	Lens Size	Lens Size	Wavelength - Peak	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Style	Lens Transparency	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Wavelength - Dominant	Configuration	Current - Test	Lens Color	Millicandela Rating [custom]	Wavelength - Dominant [custom]	Millicandela Rating	Current - Test
Kingbright WP3VGYW	6.93 mm	T-1	Through Hole	3 mm	T-1	565 nm 590 nm	3 mm	2.1 V 2.2 V	60 °	Round with Domed Top	Diffused	Radial - 3 Leads	15 mcd	40 mcd	Green Yellow	568 nm 588 nm	Common Cathode	20 mA 20 mA	White
Kingbright WP3VEGW	6.93 mm	T-1	Through Hole	3 mm	T-1	565 nm 627 nm	3 mm	2 V 2.2 V	60 °	Round with Domed Top	Diffused	Radial - 3 Leads		40 mcd	Green Red	568 nm 617 nm	Common Cathode	20 mA 20 mA	White	30 mcd
Kingbright WP3VEYW	6.93 mm	T-1	Through Hole	3 mm	T-1	590 nm 627 nm	3 mm	2 V 2.1 V	60 °	Round with Domed Top	Diffused	Radial - 3 Leads			Red Yellow		Common Cathode		White		588 nm 617 nm	15 mcd 30 mcd	20mA Red 20mA Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Yellow 568nm Green, 588nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow Radial - 3 Leads
