082-6099-RFX

Active

Amphenol RF

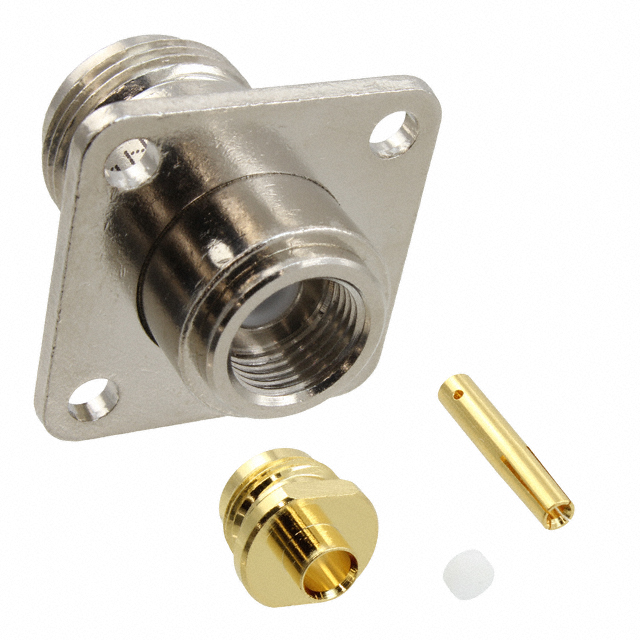

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-6099-RFX

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Insulator, 1 Contact
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Insertion Loss	Number of Ports	Housing Color	Mounting Feature	Includes	Impedance	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Mating Cycles	Body Finish	Center Contact Material	Connector Type	Frequency - Max [Max]	Shield Termination	Voltage Rating	Dielectric Material	Body Material	Contact Termination	Mounting Type	Cable Group	Cable Group [Min]	Cable Group [Max]	Ingress Protection
Amphenol RF 082-6099-RFX	0.15 dB	1	Silver	Flange	1 Connector 1 Contact 1 Insulator 1 Nut	50 Ohms	Gold	-65 ░C	165 °C	N Type	500	Nickel	Phosphor Bronze	Female Socket Jack	11 GHz	Solder	1500 V	Polytetrafluoroethylene (PTFE)	Brass	Solder
Amphenol RF 082-6092-RFX	0.15 dB	1	Silver		1 Connector 1 Contact 1 Ferrule	50 Ohms	Gold	-65 ░C	165 °C	N Type	500	Nickel	Phosphor Bronze	Female Socket Jack	11 GHz	Crimp	1500 V	Polytetrafluoroethylene (PTFE)	Brass	Crimp	Free Hanging (In-Line)	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59
Amphenol RF 082-6098-RFX	0.15 dB	1	Silver	Flange	1 Connector 1 Contact 1 Insulator 1 Nut	50 Ohms	Gold	-65 ░C	165 °C	N Type	500	Nickel	Phosphor Bronze	Female Socket Jack	11 GHz	Solder	1500 V	Polytetrafluoroethylene (PTFE)	Brass	Solder		RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 082-6096-RFX	0.15 dB	1	Silver	Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Gasket 1 Insulator 1 Lockwasher 2 Nuts	50 Ohms	Gold	-65 ░C	165 °C	N Type	500	Nickel	Phosphor Bronze	Female Socket Jack	11 GHz	Solder	1500 V	Polytetrafluoroethylene (PTFE)	Brass	Solder		RG-405 Semi Rigid	0.085 in	0.086 in	Weatherproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
