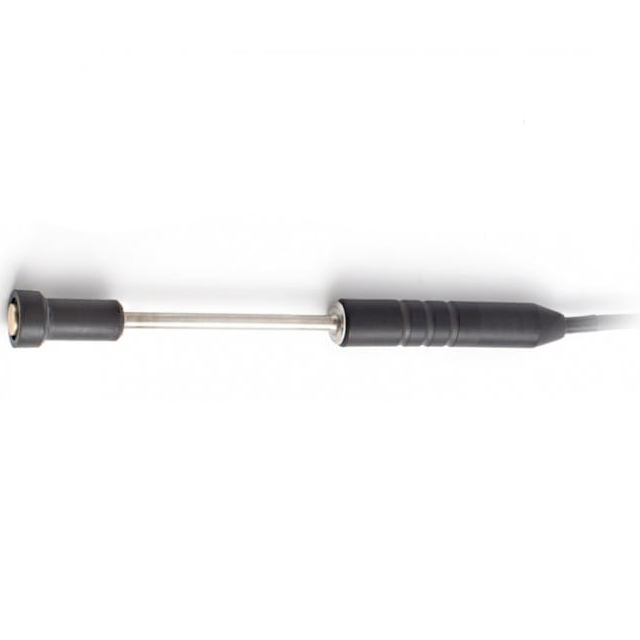

SN175E

Active

Comet America, LP

2034-220/E, TEMP. PROBE, 1M

Search across all available documentation for this part.

Active

Comet America, LP

2034-220/E, TEMP. PROBE, 1M

Technical Specifications

Parameters and characteristics for this part

Specification	SN175E

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	11 mm
Element Type	Pt1000
Length - Lead Wire	3.281 '
Length - Lead Wire	1 m
Length - Protective Tube [x]	57 mm
Temperature Range [Max]	220 °C
Temperature Range [Min]	-58 °F
Terminal Type	Connector

Part	Conductor Type	Length - Protective Tube [x]	Temperature Range [Max]	Temperature Range [Min]	Diameter - Protective Tube [diameter]	Length - Lead Wire	Length - Lead Wire	Element Type	Terminal Type
Comet America, LP SN175M	Non-Grounded	57 mm	220 °C	-58 °F	11 mm	3.281 '	1 m	Pt1000	Connector
Comet America, LP SN175E	Non-Grounded	57 mm	220 °C	-58 °F	11 mm	3.281 '	1 m	Pt1000	Connector
Comet America, LP SN175C	Non-Grounded	57 mm	220 °C	-58 °F	11 mm	3.281 '	1 m	Pt1000	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pt1000 Temperature Sensor -50°C ~ 220°C Non-Grounded Connector
