FI3D036AJ

Active

Belden Inc.

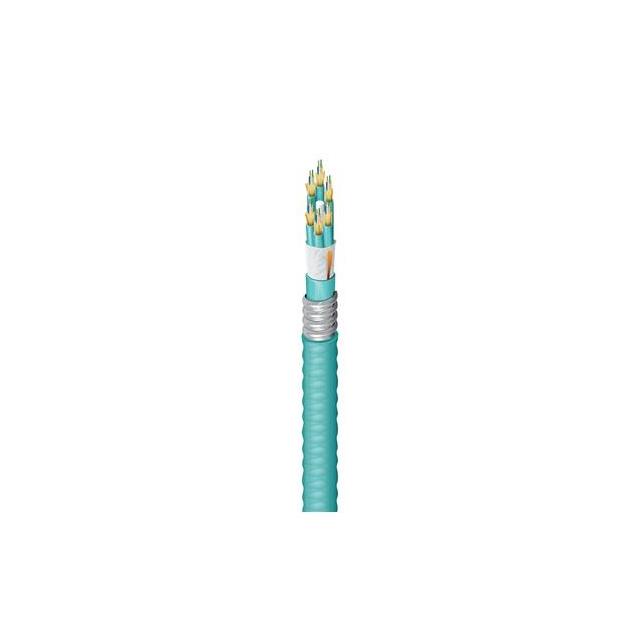

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Part	Features	Features	Core Diameter [diameter]	Type	Cladding Diameter [diameter]	Jacket Color	Style	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Tensile Strength	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter
Belden Inc. FI3D036RK	36	Rip Cord	50 µm	Multimode	125 µm	Aqua	Multiple Fibers	OFNR	16.33 mm	0.643 in	40.8 kg	-20 C	70 °C	Poly-Vinyl Chloride (PVC)
Belden Inc. FI3D036AJ	36	Armored	50 µm	Multimode	125 µm	Aqua	Multiple Fibers	OFCP			40.8 kg	0 °C	70 °C	Poly-Vinyl Chloride (PVC)	0.946 in	24.03 mm
Belden Inc. FI3D036PK	36	Rip Cord	50 µm	Multimode	125 µm	Aqua	Multiple Fibers	OFNP	15.21 mm	0.599 in	40.8 kg	0 °C	70 °C	Poly-Vinyl Chloride (PVC)
Belden Inc. FI3D036FJ	36	Armored	50 µm	Multimode	125 µm	Aqua	Multiple Fibers	OFCR	26.29 mm	1.035 in	40.8 kg	-20 C	70 °C	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 11.17

General part information

Fiber Optic Cable Aqua Multimode 125µm

Technical documentation and resources
