UPD70F3529GMA9-GBK-G

Obsolete

Renesas Electronics Corporation

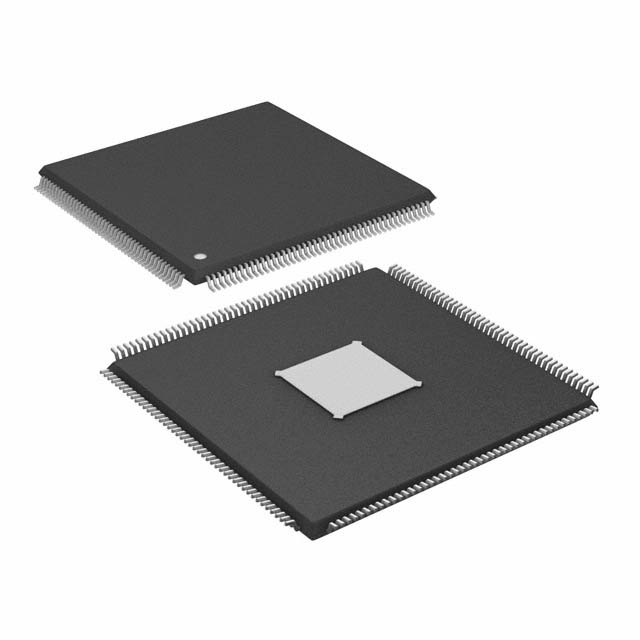

MCU 32-BIT V850E2/DX4-H V850E2M RISC 2048KB FLASH 3.3V/5V 176-PIN HLFQFP

Search across all available documentation for this part.

Obsolete

Renesas Electronics Corporation

MCU 32-BIT V850E2/DX4-H V850E2M RISC 2048KB FLASH 3.3V/5V 176-PIN HLFQFP

Technical Specifications

Parameters and characteristics for this part

32-bit Microcontrollers

Part	RAM Size	Oscillator Type	Peripherals	Program Memory Type	Number of I/O	Connectivity	Supplier Device Package	Mounting Type	Package / Case	Core Processor	Speed	EEPROM Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Data Converters	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Grade
Renesas Electronics Corporation UPD70F3529GMA-GBK-G	96 K	Internal	DMA I2S LCD LVD POR PWM WDT	FLASH	127	CANbus EBI/EMI I2C LINbus SCI SPI SSI UART/USART USB	176-HLQFP (24x24)	Surface Mount	176-LQFP Exposed Pad	V850E2M	80 MHz	32 K	2.7 V	5.5 V	2 MB	12x10b 12x12b	32-Bit	85 °C	-40 °C
Renesas Electronics Corporation UPD70F3532F1A9-KN7-A	256 K	Internal	DMA I2S LCD LVD POR PWM WDT	FLASH	165 I/O	CANbus EBI/EMI I2C LINbus SCI SPI SSI UART/USART USB	352-BGA (23x23)	Surface Mount	352-BGA	V850E2M	160 MHz	32 K	2.7 V	5.5 V	3 MB	16x10b 16x12b	32-Bit	105 °C	-40 °C
Renesas Electronics Corporation UPD70F3529GMA9-GBK-G	96 K	Internal	DMA I2S LCD LVD POR PWM WDT	FLASH	127		176-HLQFP (24x24)	Surface Mount	176-LQFP Exposed Pad	V850E2M	80 MHz	32 K	2.7 V	5.5 V	2 GB	12x10b 12x12b	32-Bit Single-Core	105 °C	-40 °C	AEC-Q100	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

The V850E2/Dx4-H is 32-bit V850E2M-H core microcontroller for high-end and high performance automotive dashboard applications.
