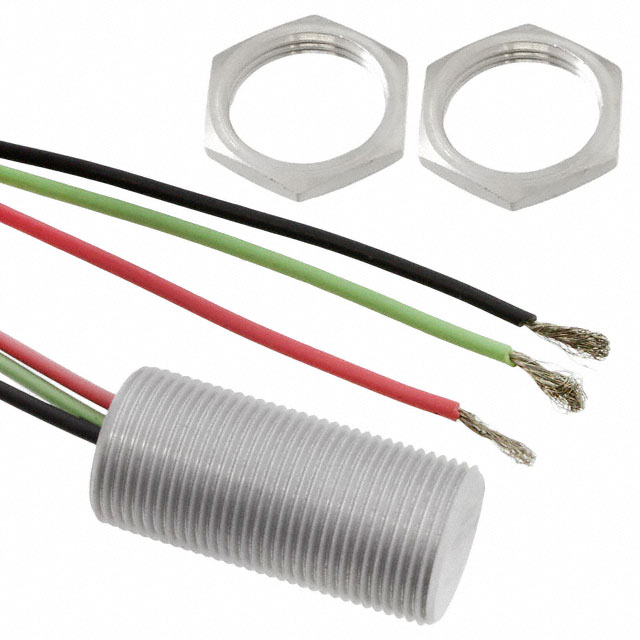

103SR14A-1
ActiveHoneywell Sensing and Productivity Solutions
SENSOR HALL DIGITAL WIRE LEADS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103SR14A-1
ActiveHoneywell Sensing and Productivity Solutions
SENSOR HALL DIGITAL WIRE LEADS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 103SR14A-1 |
|---|---|
| Actuator Material | Magnet |
| Must Operate | 16 mT |
| Must Release | 0.5 mT |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Digital, Open Collector |
| Package / Case | Cylinder, Threaded |
| Termination Style | Wire Leads |
| Type | Hall Effect Switch |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.90 | |
| 5 | $ 42.93 | |||
| 10 | $ 39.90 | |||
| 25 | $ 36.22 | |||
| 50 | $ 33.66 | |||
| 100 | $ 32.93 | |||
Description
General part information
103SR14 Series
SENSOR HALL DIGITAL WIRE LEADS
