C1BXS-1636M

Active

CW Industries

IDC CABLE - CSR16S/AE16M/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR16S/AE16M/X

Technical Specifications

Parameters and characteristics for this part

Part	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish	Cable Termination	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Features	Number of Positions
CW Industries C1BXS-1636M	Multiple Ribbon	2.54 µm	100 µin	16	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Cable	Tin	IDC	0.05 "	1.27 mm	2	Unshielded	Strain Relief
CW Industries C1BXS-1436G		2.54 µm	100 µin		3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Cable	Tin	IDC	0.05 "	1.27 mm	2	Unshielded	Strain Relief	14
CW Industries C1BXS-1036G		2.54 µm	100 µin		3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Cable	Tin	IDC	0.05 "	1.27 mm	2	Unshielded	Strain Relief	10
CW Industries C1BXS-1036M	Multiple Ribbon	2.54 µm	100 µin		3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Cable	Tin	IDC	0.05 "	1.27 mm	2	Unshielded	Strain Relief	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

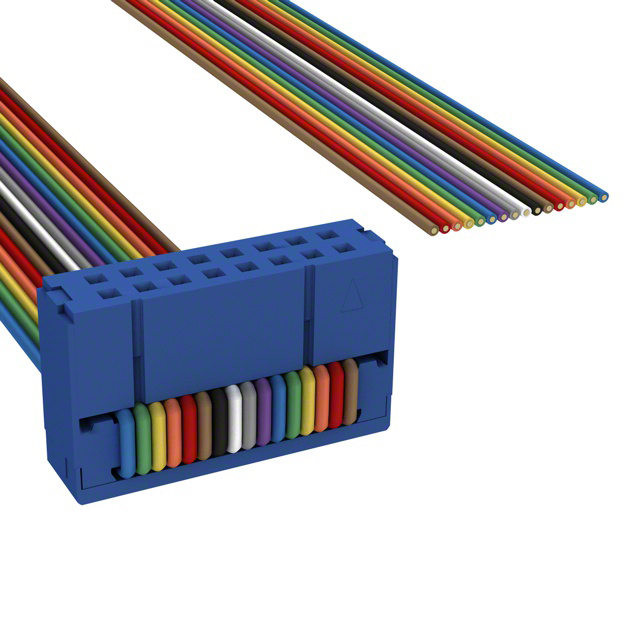

16 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
