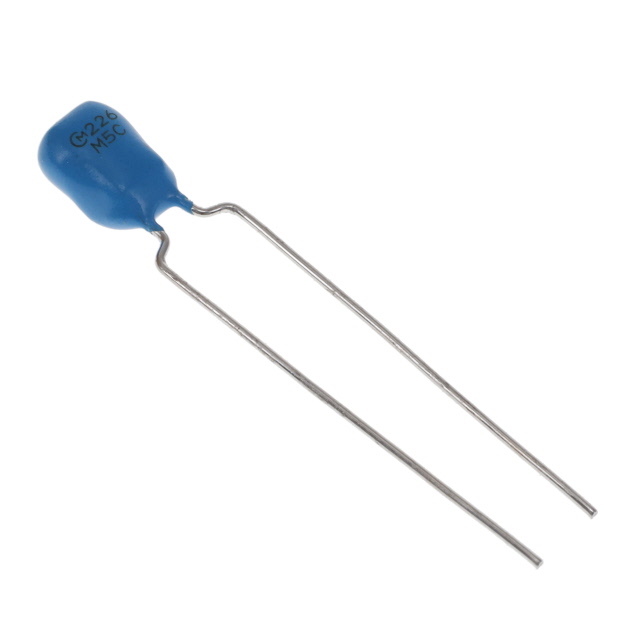

RCEC71H226MWK1H03B
ActiveMurata Power Solutions Inc.
CAP CER 22UF 50V X7S RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCEC71H226MWK1H03B
ActiveMurata Power Solutions Inc.
CAP CER 22UF 50V X7S RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCEC71H226MWK1H03B |
|---|---|
| Applications | Automotive |
| Capacitance | 22 µF |
| Height - Seated (Max) [Max] [z] | 0.295 in |
| Height - Seated (Max) [Max] [z] | 7.5 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 5.5 mm, 0.217 in |
| Size / Dimension [y] | 4 mm, 0.157 " |
| Temperature Coefficient | X7S |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.11 | |
| 10 | $ 1.62 | |||
| 50 | $ 1.49 | |||
| 100 | $ 1.23 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.87 | |||
| 2500 | $ 0.84 | |||
| 5000 | $ 0.81 | |||
Description
General part information
RCEC71H Series
22 µF ±20% 50V Ceramic Capacitor X7S Radial
