333-072-558-812
ActiveEDAC Inc.

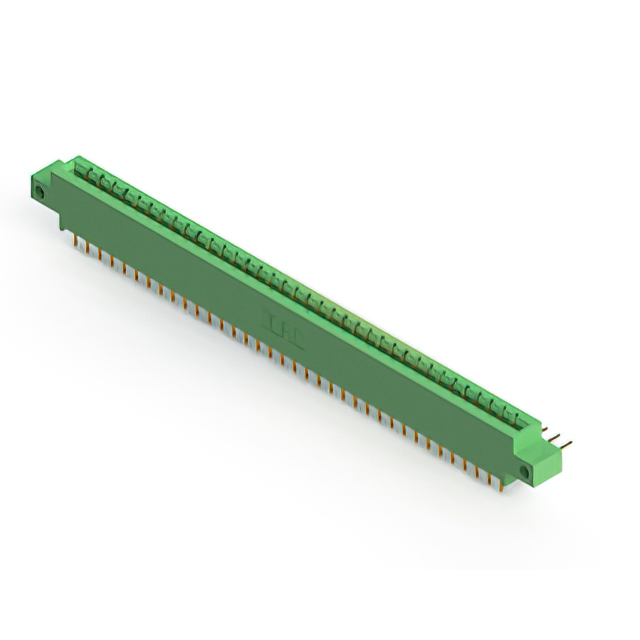

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
333-072-558-812
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-072-558-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
333-072 Series
| Part | Termination | Mounting Type | Read Out | Number of Positions | Flange Feature | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Termination Rows | Gender | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Card Type | Contact Type | Contact Finish | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Wire Wrap | Through Hole Right Angle | Dual | 72 | 4-40 Flush Mount Threaded Insert Top Opening | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | |||||
EDAC Inc. | Wire Wrap | Through Hole Right Angle | Dual | 72 | 4-40 Threaded Insert Top Mount Opening | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | |||||
EDAC Inc. | Wire Wrap | Through Hole | Dual | 72 | Floating Bobbin Flush Mount | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | Through Hole | Dual | 72 | Flush Mount Top Opening Unthreaded | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | 0.156 in | 3.96 mm | |||
EDAC Inc. | Wire Wrap | Through Hole Right Angle | Dual | 72 | Side Mount Opening Unthreaded | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | |||
EDAC Inc. | Solder | Board Edge Straddle Mount | Dual | 72 | Floating Bobbin Top Mount Opening | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | 0.116 in | 2.95 mm | Card Extender | ||
EDAC Inc. | Solder | Through Hole Right Angle | Dual | 72 | Flush Mount Top Opening Unthreaded | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | 0.128 " | 3.25 mm | |||
EDAC Inc. | Wire Wrap | Through Hole | Dual | 72 | 4-40 Flush Mount Threaded Insert Top Opening | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | |||||
EDAC Inc. | Wire Wrap | Through Hole Right Angle | Dual | 72 | Floating Bobbin Top Mount Opening | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | Board Edge Straddle Mount | Dual | 72 | M3 Threaded Insert Top Mount Opening | 36 | 10 Áin | 0.25 Ám | Copper Alloy | -40 °C | 105 ░C | 2 | 2 | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Non Specified - Dual Edge | Cantilever | Gold | 0.156 in | 3.96 mm | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
