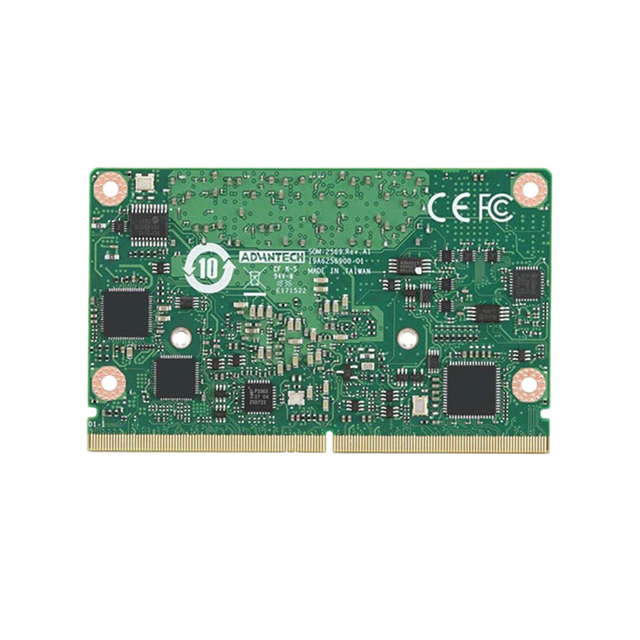

SOM-2569CNCCA-S7A1

Active

Advantech Corp

SBC 1.6GHZ 4 CORE 8GB/8GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1.6GHZ 4 CORE 8GB/8GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-2569CNCCA-S7A1

Architecture	MPU
Connectivity	SPI, USB, UART, Ethernet, MMC/SD/SDIO, I2S, CANbus, PCIe, I2C
Core Processor	Intel® Atom® x7-E3950
Number of I/O	12
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Package / Case	Module
Peripherals	LCD, SATA, LVDS, HDMI
RAM Size	8 GB
Speed	1.6 GHz

Part	Package / Case	Peripherals	Core Processor	Architecture	Number of I/O	Speed	Connectivity	Flash Size	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size
Advantech Corp SOM-2569BNBC-S7A1	Module	HDMI LCD LVDS SATA	Intel® Atom® x7-E3950	MPU	12	1.6 GHz	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPI UART USB	32 GB	60 °C	0 °C	8 GB
Advantech Corp SOM-2569CNCCA-S7A1	Module	HDMI LCD LVDS SATA	Intel® Atom® x7-E3950	MPU	12	1.6 GHz	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPI UART USB		60 °C	0 °C	8 GB
Advantech Corp SOM-2569BNBX-S7A1	Module	HDMI LCD LVDS SATA	Intel® Atom® x7-E3950	MPU	12	1.6 GHz	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPI UART USB	32 GB	85 °C	-40 °C	8 GB
Advantech Corp SOM-2569BN0C-S3A1	Module	HDMI LCD LVDS SATA	Intel® Atom® x5-E3930	MPU	12	1.3 GHz	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPI UART USB		60 °C	0 °C	8 GB
Advantech Corp SOM-2569CNCCA-S2A1	Module	HDMI LCD LVDS SATA	Intel® Pentium® N4200	MPU	12	1.1 GHz	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPI UART USB		60 °C	0 °C	8 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 499.80

General part information

Intel® Atom® x7-E3950 System On Chip (SOC) IC - 1.6GHz
