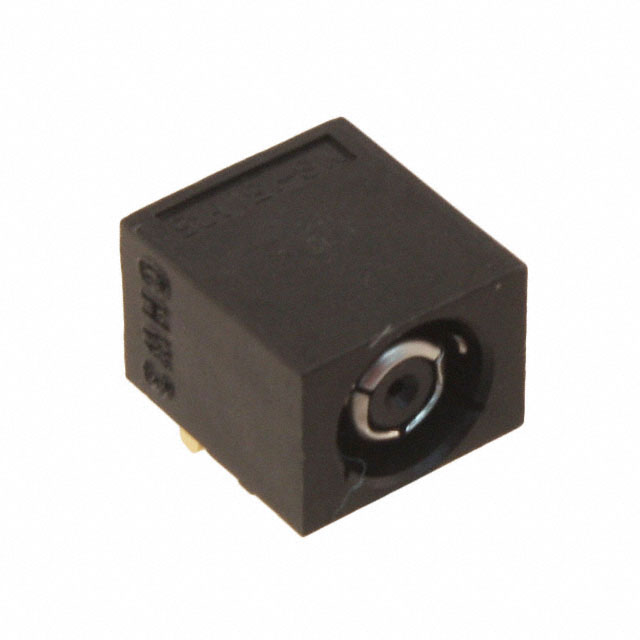

MS-151NB

Unknown

Hirose Electric USA, Inc.

CONN COAX SWITCH RCPT R/A 50OHM

Search across all available documentation for this part.

Unknown

Hirose Electric USA, Inc.

CONN COAX SWITCH RCPT R/A 50OHM

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Mating Cycles	Body Finish	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Contact Termination	Mounting Type	Features	Insertion Loss	Number of Ports	Fastening Type	Center Contact Material	Connector Type	Impedance	Housing Color	Connector Style [diameter]	Connector Style	Center Contact Plating
Hirose Electric USA, Inc. MS-151NB	Stainless Steel	5000	Nickel	3 GHz	85 °C	-40 °C	Solder	Solder	Surface Mount Right Angle	Internal Switch	0.6 dB	1	Snap-On	Phosphor Bronze	Female Socket Receptacle	50 Ohms	Black	4.15 mm	Coaxial Switch	Gold
Hirose Electric USA, Inc. MS-151-C(LP)	Stainless Steel	5000	Nickel	3 GHz	85 °C	-40 °C	Solder	Solder	Free Hanging (In-Line) Right Angle	Internal Switch		1	Snap-On	Phosphor Bronze	Male Pin Plug	50 Ohms	Black	4.15 mm	Coaxial Switch	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Switch - 4.15mm Plug Dia Connector Receptacle, Female Socket 50 Ohms Surface Mount, Right Angle Solder
