0395200518

Active

Molex

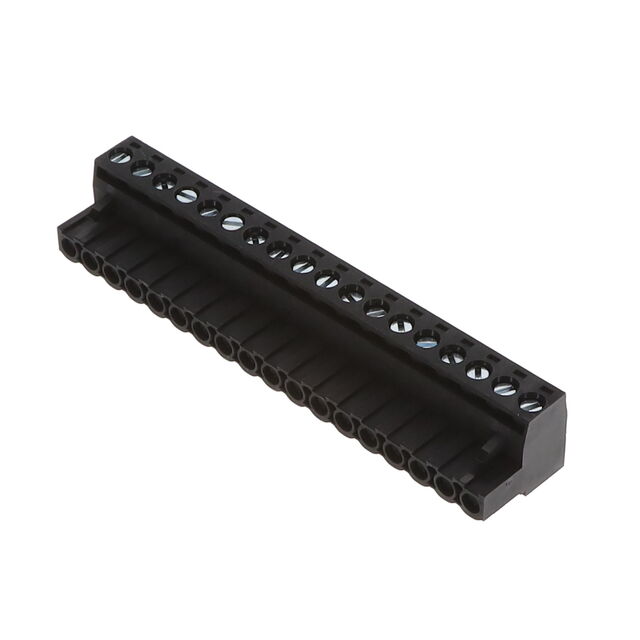

TERM BLOCK PLUG 18POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec

0395200518

Active

Molex

TERM BLOCK PLUG 18POS STR 5MM

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395200518

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Gold
Current - UL	18 A
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	18
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	18
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.56 Nm
Torque - Screw	5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	6.5 mm

039520 Series

...

Part	Number of Levels	Contact Mating Finish	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Torque - Screw	Torque - Screw	Contact Material	Positions Per Level	Wire Strip Length	Material Flammability Rating	Pitch [x]	Pitch [x]	Features	Voltage - UL	Current - UL	Number of Positions	Termination Style	Type	Insulation Height	Insulation Height	Color
Molex 0395200713	1	Gold	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	13	6.5 mm	UL94 V-0	5 mm	0.197 in	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18 A	13	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Black
Molex 0395200723	1	Gold	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	23	6.5 mm	UL94 V-0	5 mm	0.197 in	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18 A	23	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Black
Molex 0395200120	1	Tin	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	20	6.5 mm	UL94 V-0	5 mm	0.197 in	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18 A	20	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Black
Molex 0395200115	1	Tin	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	15	6.5 mm	UL94 V-0	5 mm	0.197 in	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18 A	15	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Black
Molex 0395200102	1	Tin	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	2	6.5 mm	UL94 V-0	5 mm	0.197 in	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18 A	2	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Black
Molex 0395205217	1	Tin	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	17	6.5 mm	UL94 V-0	5 mm	0.197 in	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18 A		Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Green
Molex 0395205509	1	Gold	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	9	6.5 mm	UL94 V-0	5 mm	0.197 in		300 V	18 A	9	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Green
Molex 0395200504	1	Gold	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	4	6.5 mm	UL94 V-0	5 mm	0.197 in		300 V	18 A	4	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Black
Molex 0395205623	1	Gold	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	23	6.5 mm	UL94 V-0	5 mm	0.197 in	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18 A	23	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Green
Molex 0395200518	1	Gold	30 AWG	12 AWG	-40 °C	115 °C	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	Phosphor Bronze	18	6.5 mm	UL94 V-0	5 mm	0.197 in		300 V	18 A	18	Screw - Rising Cage Clamp	Plug Female Sockets	0.591 in	15 mm	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.18
		10	$ 12.17
		25	$ 11.78
		50	$ 11.01
		120	$ 10.85
		360	$ 10.08
		600	$ 9.89

Description

General part information

039520 Series

18 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
