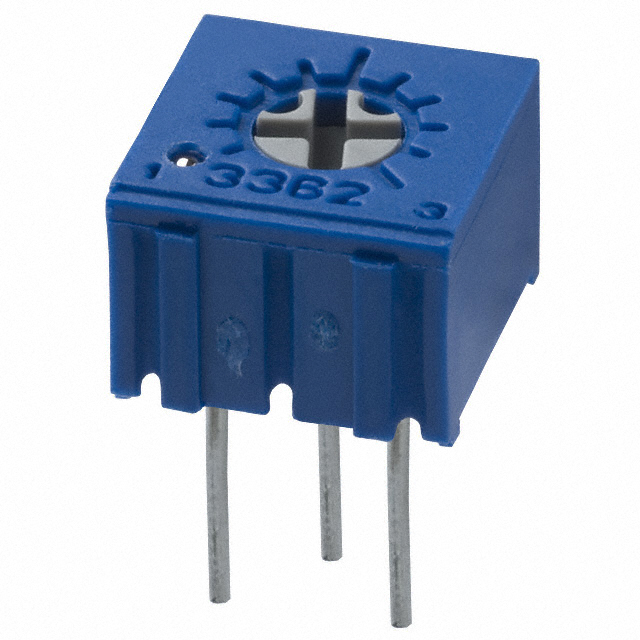

3362H-1-254

Active

Bourns Inc.

TRIMMER 250K OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 250K OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Tolerance	Temperature Coefficient	Adjustment Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistive Material	Number of Turns	Resistance	Mounting Type	Power (Watts)	Power (Watts)
Bourns Inc. 3362H-1-101	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	100 Ohms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-500LF	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	50 Ohms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-103LF	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	10000 Ohms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-203	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	20 kOhms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-254	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	250 kOhms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-204LF	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	200000 Ohms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-501	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	500 Ohms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-502LF	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	5 kOhms	Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-504	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1		Through Hole	0.5 W	0.5 W
Bourns Inc. 3362H-1-204	PC Pins	10 %	100 ppm/°C	Top Adjustment	6.6 mm	0.275 in	6.99 mm	0.26 "	Cermet	1	200000 Ohms	Through Hole	0.5 W	0.5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 1.82

General part information

250 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
