HX-2000-150-BK

Active

BRADY

SLEEVE, 2 IN DIA X 1.5 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 2 IN DIA X 1.5 IN W

Technical Specifications

Parameters and characteristics for this part

Specification	HX-2000-150-BK

Color	Black
Label Size [Max]	49.5 mm, 1.95 in
Label Size [Min]	25.4 mm
Label Size [x]	1.5 ", 38.1 mm
Label Size [y]	80.4 mm, 3.17 in
Label Type	Heat Shrinkable
Material	Polyolefin (PO)
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C

Part	Material	Label Type	Color	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Label Size [y]	Label Size [Max]	Label Size [Min]	Label Size [x]	Label Size [y]	Label Size [Min]	Label Size [x]	Label Size [Max]	Operating Temperature [Min]	Operating Temperature [Max]
BRADY HX-2000-150-BK	Polyolefin (PO)	Heat Shrinkable	Black	55 °C	-10 °C	3.17 in 80.4 mm	1.95 in 49.5 mm	25.4 mm	1.5 " 38.1 mm
BRADY HX-2000-2-WT-2	Polyolefin (PO)	Heat Shrinkable	White			80.4 mm	49.5 mm	25.4 mm	50.8 mm	3.17 "	1 "	2 "	1.95 "	-20 C	60 °C
BRADY HX-2000-150-WT	Polyolefin (PO)	Heat Shrinkable	White	55 °C	-10 °C	3.17 in 80.4 mm	1.95 in 49.5 mm	25.4 mm	1.5 " 38.1 mm
BRADY HX-2000-3-WT-J	Polyolefin (PO)	Heat Shrinkable	White			80.4 mm	49.5 mm	25.4 mm	50.8 mm	3.17 "	1 "	2 "	1.95 "	-20 C	60 °C
BRADY HX-2000-3-BK	Polyolefin (PO)	Heat Shrinkable	Black			80.4 mm	49.5 mm	25.4 mm	50.8 mm	3.17 "	1 "	2 "	1.95 "	-20 C	60 °C
BRADY HX-2000-2-BK	Polyolefin (PO)	Heat Shrinkable	Black			80.4 mm	49.5 mm	25.4 mm	50.8 mm	3.17 "	1 "	2 "	1.95 "	-30 ░C	60 °C
BRADY HX-2000-2-WT-J	Polyolefin (PO)	Heat Shrinkable	White			80.4 mm	49.5 mm	25.4 mm	50.8 mm	3.17 "	1 "	2 "	1.95 "	-20 C	60 °C
BRADY HX-2000-3-YL-J	Polyolefin (PO)	Heat Shrinkable	Yellow			80.4 mm	49.5 mm	25.4 mm	50.8 mm	3.17 "	1 "	2 "	1.95 "	-20 C	60 °C
BRADY HX-2000-3-WT	Polyolefin (PO)	Heat Shrinkable	White			80.4 mm	49.5 mm	25.4 mm	50.8 mm	3.17 "	1 "	2 "	1.95 "	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 473.48

General part information

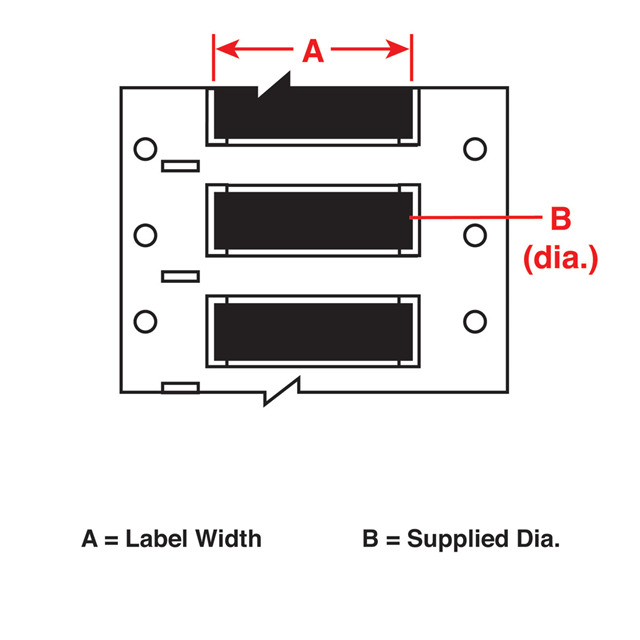

Black Heat Shrinkable Label 1.50" W x 3.17" H (38.1mm x 80.4mm); Cable O.D. 1.00" ~ 1.95" (25.4mm ~ 49.5mm)
