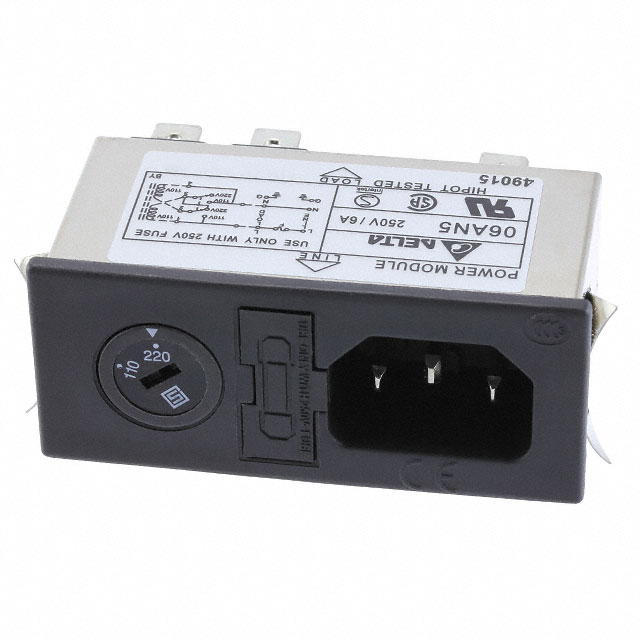

06AN5

Active

Delta Electronics

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 6A FUSE/VOLTAGE SELECTOR ST 1 PORT

Search across all available documentation for this part.

Active

Delta Electronics

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 6A FUSE/VOLTAGE SELECTOR ST 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	06AN5

Accomodates a Fuse	True
Approval Agency	SEMKO, UL, CSA, CE
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	66 mm
Panel Cutout Dimensions [y]	27 mm
Panel Thickness [Max]	1.78 mm
Panel Thickness [Max]	0.07 in
Panel Thickness [Min]	0.04 in
Panel Thickness [Min]	1.02 mm
Termination	Quick Connect

Part	Termination	Connector Style	Filter Type	Features	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accomodates a Fuse	Mounting Type	Approval Agency	Connector Type	Fuse Holder, Drawer	Material Flammability Rating
Delta Electronics 06AN5	Quick Connect	IEC 320-C14	Unfiltered - Commercial	Voltage Selector	0.04 in	1.02 mm	1.78 mm	0.07 in	27 mm	66 mm		Panel Mount Snap-In	CE CSA SEMKO UL	Receptacle Male Blades - Module	Fuse Holder	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	20	$ 16.35

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
