1598TH1

Active

Hammond Manufacturing

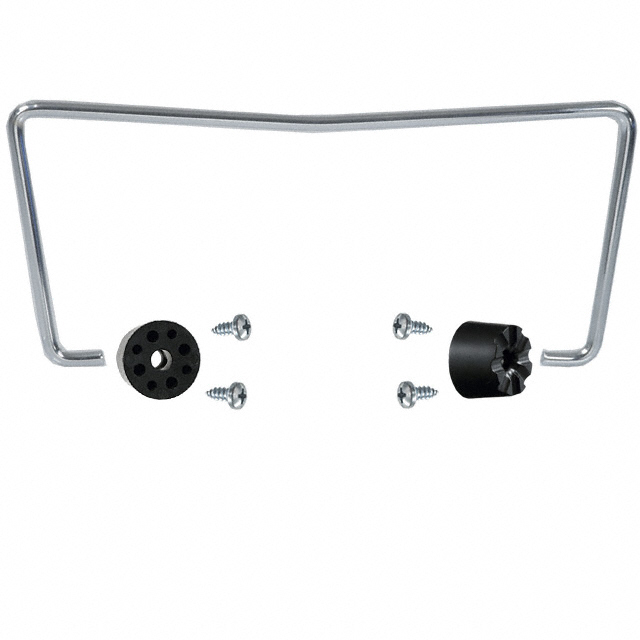

TILT BAIL FOR PLASTIC INSTRUMENT ENCLOSURE, BAIL - BRIGHT CHROME PLATED STEEL, FEET - MATTE BLACK PLASTIC, 207.5MM PRODUCT LENGTH, 99.39MM PRODUCT DEPTH, 16.5MM PRODUCT HEIGHT

Deep-Dive with AI

Search across all available documentation for this part.

Documents1598D Drawing

1598TH1

Active

Hammond Manufacturing

TILT BAIL FOR PLASTIC INSTRUMENT ENCLOSURE, BAIL - BRIGHT CHROME PLATED STEEL, FEET - MATTE BLACK PLASTIC, 207.5MM PRODUCT LENGTH, 99.39MM PRODUCT DEPTH, 16.5MM PRODUCT HEIGHT

Deep-Dive with AI

Documents1598D Drawing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1598TH1

Accessory Type	Bail, Feet
For Use With/Related Products	E, 1598 C, F, G Series

1598 Series

Part	Design	Material Flammability Rating	Area (L x W)	Area (L x W)	Color	Features	Height [z]	Height [z]	Ratings	Container Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material	For Use With/Related Products	Accessory Type	Weight	Weight	Area (L x W) [custom]	Area (L x W) [custom]	Screw Head Type	Type	Length - Below Head	Length - Below Head	Length - Below Head	Drive Type	Thread Size	Size / Dimension [x]	Size / Dimension [y]
Hammond Manufacturing 1598RDBK	Split Sides and End Panel(s)	UL94 V-0	57.2 in²	369 cm²	Black	Card Guides EMI Shielded PCB Supports	2.488 in	63.2 mm	IP54	Box	7.077 "	179.76 mm	8.075 "	205.11 mm	ABS
Hammond Manufacturing 1598TH1																1598 C E F G Series	Bail Feet
Hammond Manufacturing 1598CBK	Split Sides and End Panel(s)	UL94 V-0	42.9 in²	277 cm²	Black	Card Guides Flame Retardant PCB Supports	2.008 in	51 mm	IP54	Box	6.063 in	154 mm	7.067 in	179.5 mm	ABS			321.6 g	0.709 lb
Hammond Manufacturing 1598HBK	Split Sides and End Panel(s)	UL94 V-0			Black	Card Guides Flame Retardant PCB Supports	1.614 in	41 mm	IP54	Box	7.87 in	199.9 mm	11.059 "	280.9 mm	ABS			635 g	1.4 lbs	561 cm˛	87 in˛
Hammond Manufacturing 1598BBSGY	Split Sides and End Panel(s)		42.9 in²	277 cm²	Gray	Card Guides PCB Supports	1.378 in	35 mm	IP54	Box	6.083 in	154.51 mm	7.047 in	178.99 mm	ABS			240.86 g	0.531 lb
Hammond Manufacturing 1598TS100						Self Tapping																Flat Head	Sheet Metal Screw	0.625 in	15.88 mm	0.625 in	Phillips	#4
Hammond Manufacturing 1598EBK	Split Sides and End Panel(s)	UL94 V-0			Black	Card Guides Flame Retardant PCB Supports			IP54	Box		6.246 in		6.313 in	ABS			432.27 g	0.953 lb										160.35 mm	158.65 mm
Hammond Manufacturing 1598DBK	Split Sides and End Panel(s)	UL94 V-0	57.2 in²	369 cm²	Black	Card Guides Flame Retardant PCB Supports	2.488 in	63.2 mm	IP54	Box	7.077 "	179.76 mm	8.075 "	205.11 mm	ABS			435 g	0.959 lb
Hammond Manufacturing 1598EGY	Split Sides and End Panel(s)	UL94 V-0			Gray	Card Guides Flame Retardant PCB Supports			IP54	Box		6.246 in		6.313 in	ABS			386.91 g	0.853 lb										160.35 mm	158.65 mm
Hammond Manufacturing 1598CSGYPBK	Split Sides and End Panel(s)		42.9 in²	277 cm²		Card Guides PCB Supports	2.008 in	51 mm	IP54	Box	6.063 in	154 mm	7.067 in	179.5 mm	ABS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.48
Digikey	Bulk	1	$ 16.09
		5	$ 15.20
		10	$ 14.30
		25	$ 13.41
		50	$ 12.51
		100	$ 12.29
		250	$ 12.07
		500	$ 11.89

Description

General part information

1598 Series

TILT BAIL FOR PLASTIC INSTRUMENT ENCLOSURE, BAIL - BRIGHT CHROME PLATED STEEL, FEET - MATTE BLACK PLASTIC, 207.5MM PRODUCT LENGTH, 99.39MM PRODUCT DEPTH, 16.5MM PRODUCT HEIGHT

Documents

Technical documentation and resources

1598D Drawing

Datasheet
