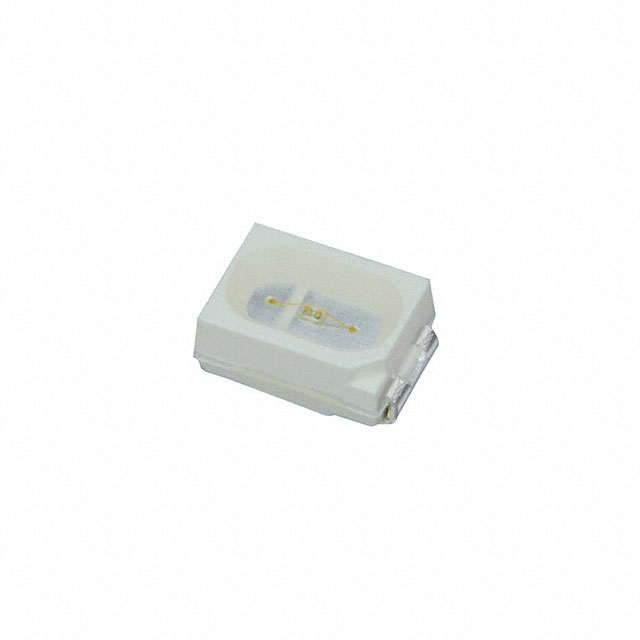

CLM3A-BKW-CTAUA453

Unknown

Cree LED

LED BLUE CLEAR 2PLCC SMD

Search across all available documentation for this part.

Unknown

Cree LED

LED BLUE CLEAR 2PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Current - Test	Millicandela Rating	Lens Style	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Dominant	Lens Color	Mounting Type	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Configuration	Lens Transparency	Viewing Angle	Wavelength - Dominant [custom]
Cree LED CLM3A-BKW-CTAUA453	2-PLCC	20 mA	420 mcd	Rectangle with Flat Top	3.4 V	Blue	470 nm	Colorless	Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead	Standard	Clear
Cree LED CLM3A-WKW-CWAXA153	2-PLCC	20 mA	1680 mcd	Rectangle with Flat Top	3.2 V	Cool White	5500 K	Yellow	Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead	Standard	Diffused	120 °
Cree LED CLM3A-GKW-CVAWA793	2-PLCC	20 mA	1055 mcd	Rectangle with Flat Top	3.4 V	Green		Colorless	Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead	Standard	Clear		527 nm
Cree LED CLM3A-MKW-CWAXA233	2-PLCC	20 mA	1680 mcd	Rectangle with Flat Top	3.2 V	Warm White	3200 K	Yellow	Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead	Standard	Diffused	120 °
Cree LED CLM3A-WKW-CWAXA123	2-PLCC								Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead
Cree LED CLM3A-MKW-CVBXA233	2-PLCC	20 mA	1570 mcd	Rectangle with Flat Top	3.2 V	Warm White	3200 K	Yellow	Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead	Standard	Diffused	120 °
Cree LED CLM3A-WKW-CWAXA133	2-PLCC								Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead
Cree LED CLM3A-WKW-CWAWBJQ3	2-PLCC								Surface Mount	1.4 mm	2 mm	2.7 mm	2-SMD J-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Blue 470nm LED Indication - Discrete 3.4V 2-SMD, J-Lead

Technical documentation and resources
