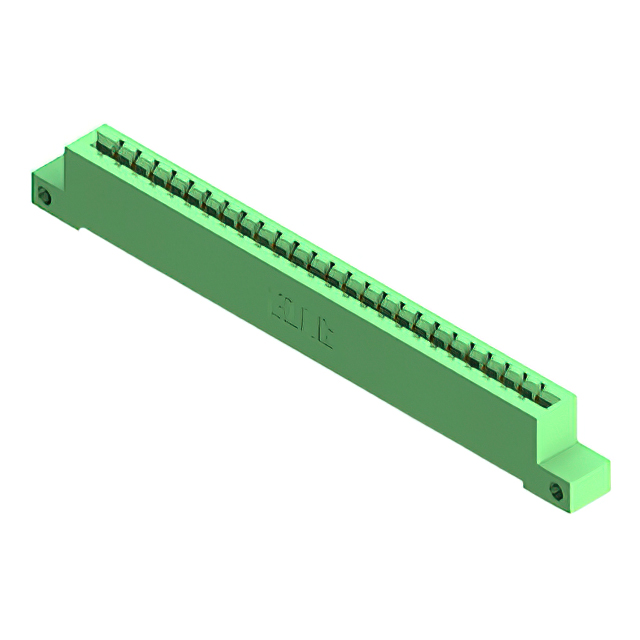

337-025-520-112

Active

EDAC Inc.

3.96MM STRAIGHT 25P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

337-025-520-112

Active

EDAC Inc.

3.96MM STRAIGHT 25P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-025-520-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	25
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

337-025 Series

...

Part	Termination Rows	Material - Insulation	Mounting Type	Contact Finish	Card Type	Gender	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Flange Feature
EDAC Inc. 337-025-520-112	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Solder	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám
EDAC Inc. 337-025-559-102	1	Polyester Thermoplastic	Through Hole Right Angle	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Wire Wrap	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám
EDAC Inc. 337-025-544-103	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Wire Wrap	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám
EDAC Inc. 337-025-541-658	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever		4-40 Threaded Insert Top Mount Opening		Wire Wrap	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 337-025-558-108	1	Polyester Thermoplastic	Through Hole Right Angle	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever		4-40 Flush Mount Threaded Insert Top Opening		Wire Wrap	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám
EDAC Inc. 337-025-540-658	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever		4-40 Threaded Insert Top Mount Opening		Wire Wrap	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám
EDAC Inc. 337-025-523-612	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever		Side Mount Opening Unthreaded		Solder	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám		3.25 mm	0.128 in
EDAC Inc. 337-025-500-658	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever		4-40 Threaded Insert Top Mount Opening		Solder Eyelet(s)	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 337-025-542-604	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Wire Wrap	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám
EDAC Inc. 337-025-544-604	1	Polyester Thermoplastic	Through Hole	Gold	Non Specified - Single Edge	Female	0.156 in	3.96 mm	1	Cantilever	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Wire Wrap	Copper Alloy	-40 °C	105 ░C	Single	25	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.62
LCSC	Piece	1	$ 5.34
		200	$ 2.07
		500	$ 1.99
		1000	$ 1.96

Description

General part information

337-025 Series

25 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
