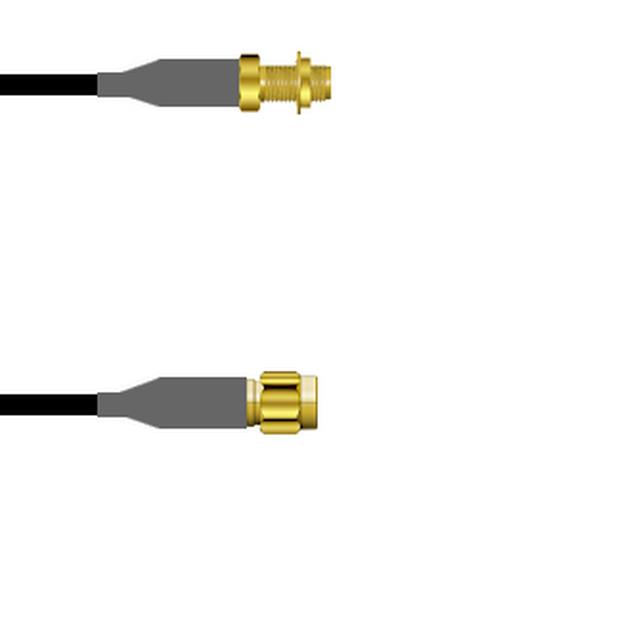

Q-2Y03D00081.5M

Active

Amphenol Custom Cable

COAX CBL SMA TO SMA 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMA 4.9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2Y03D00081.5M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	2nd Contact Gender	Color	2nd Connector	Features	Connector Impedance	1st Connector Mounting Feature	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector	Cable Impedance	Overall Impedance	Length	Length	Length	1st Contact Gender	Style	Cable Type	2nd Connector Mounting Type
Amphenol Custom Cable Q-2Y03D00081.5M	Male	Black	SMA Plug	Shielded	50 Ohms	Bulkhead - Front Side Nut	1 GHz	Panel Mount	SMA Jack	50 Ohms	50 Ohms	59.1 in	4.9 ft	1.5 m	Female	SMA to SMA	RG-58	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA RG-58 59.1" (1.5m) 4.9'
