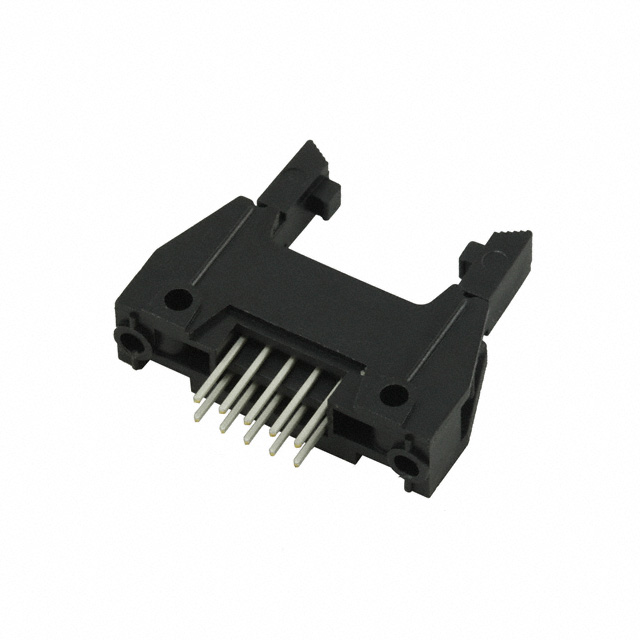

N3793-6303RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +1

N3793-6303RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3793-6303RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.695 in
Overall Contact Length	17.65 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N3793 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating [x]	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Current Rating (Amps)	Contact Shape	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Shrouding	Style	Fastening Type	Contact Finish - Mating	Termination	Insulation Material	Contact Finish - Post	Connector Type	Overall Contact Length [x]	Overall Contact Length [x]
3M (TC) N3793-6303RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	17.27 mm	0.68 in	0.695 in	17.65 mm	30 Áin	0.76 Ám	Through Hole	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	3.94 mm	0.155 "	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Latch Lock/Eject Hooks Long	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header
3M (TC) N3793-5502	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	8.64 mm	0.34 in			30 Áin	0.76 Ám	Through Hole Right Angle	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	2.84 mm	0.112 in	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Latch Lock/Eject Hooks Short	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin-Lead	Header
3M (TC) N3793-6003RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	17.27 mm	0.68 in	0.695 in	17.65 mm	30 Áin	0.76 Ám	Through Hole	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	3.94 mm	0.155 "	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Push-Pull	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header
3M (TC) N3793-600T02RB	300 µin	7.62 µm	UL94 V-0	6.1 mm	0.24 in	17.27 mm	0.68 in			30 Áin	0.76 Ám	Through Hole	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	4.45 mm	0.175 in	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Push-Pull	Gold	Press-Fit Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Tin	Header	0.715 "	18.16 mm
3M (TC) N3793-5303RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	8.64 mm	0.34 in			30 Áin	0.76 Ám	Through Hole Right Angle	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	3.94 mm	0.155 "	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Latch Lock/Eject Hooks Long	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header
3M (TC) N3793-6302RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	17.27 mm	0.68 in	0.652 in	16.56 mm	30 Áin	0.76 Ám	Through Hole	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	2.84 mm	0.112 in	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Latch Lock/Eject Hooks Long	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header
3M (TC) N3793-5302RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	8.64 mm	0.34 in			30 Áin	0.76 Ám	Through Hole Right Angle	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	2.84 mm	0.112 in	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Latch Lock/Eject Hooks Long	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header
3M (TC) N3793-6202RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	17.27 mm	0.68 in	0.652 in	16.56 mm	30 Áin	0.76 Ám	Through Hole	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	2.84 mm	0.112 in	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Latch Lock/Eject Hooks Short	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header
3M (TC) N3793-1002RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	7.87 mm	0.31 in			30 Áin	0.76 Ám	Through Hole Right Angle	0.1 in	2.54 mm	10	2.54 mm	0.1 in	2	1.75 A	Square	Black	All	2.84 mm	0.112 in	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 3 Wall	Board to Board Cable	Push-Pull	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header
3M (TC) N3793-D302RB	200 µin	5.08 µm	UL94 V-0	6.1 mm	0.24 in	16.76 mm	0.66 in			30 Áin	0.76 Ám	Through Hole Right Angle	0.1 in	2.54 mm		2.54 mm	0.1 in	2		Square	Black	All	2.84 mm	0.112 in	Copper Alloy	105 ░C	-55 °C	Male Pin	Shrouded - 3 Wall	Board to Board Cable	Latch Lock/Eject Hooks Long	Gold	Solder	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Tin	Header Stackable (2)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	56	$ 2.05
Digikey	Bulk	1	$ 2.69
		10	$ 2.34
		450	$ 1.74
		900	$ 1.69
		1350	$ 1.49
		5400	$ 1.32
Newark	Each	1	$ 2.91
		10	$ 2.65
		100	$ 2.27
		500	$ 1.90
		1000	$ 1.63
		5000	$ 1.44
		10000	$ 1.41

Description

General part information

N3793 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

Drawing EN

Datasheet
