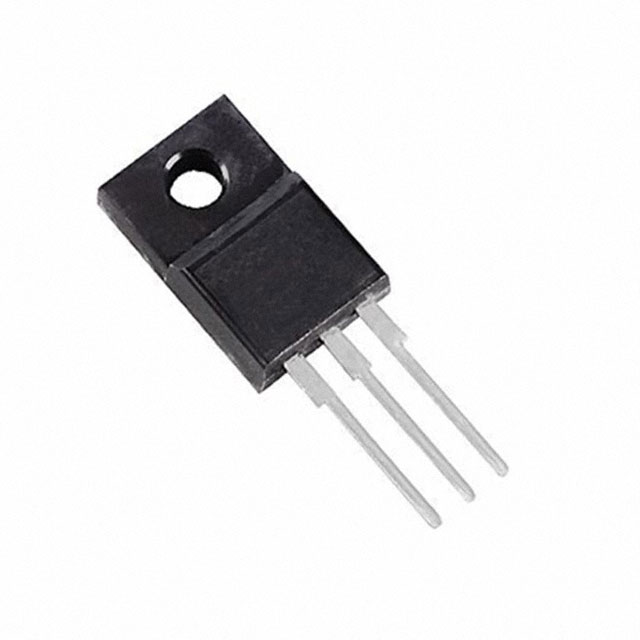

2STA1837

Obsolete

STMicroelectronics

TRANS PNP 230V 1A TO220FP

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS PNP 230V 1A TO220FP

Technical Specifications

Parameters and characteristics for this part

Specification	2STA1837

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100 hFE
Frequency - Transition	70 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-220-3 Full Pack
Power - Max [Max]	20 W
Supplier Device Package	TO-220FP
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	230 V

Part	Transistor Type	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Package / Case	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature	Power - Max [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]
STMicroelectronics 2STA1837	PNP	1 µA	70 MHz	TO-220-3 Full Pack	1 A	1 V	100 hFE	TO-220FP	230 V	150 °C	20 W	Through Hole
STMicroelectronics 2STA1695	PNP	100 nA	20 MHz	SC-65-3 TO-3P-3		700 mV	70	TO-3P	140 V	150 °C	100 W	Through Hole
STMicroelectronics 2STA1694	PNP	10 µA	20 MHz	SC-65-3 TO-3P-3	8 A	1.5 V	70	TO-3P		150 °C	80 W	Through Hole	120 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 230 V 1 A 70MHz 20 W Through Hole TO-220FP
