10000700

Active

Bopla Enclosures

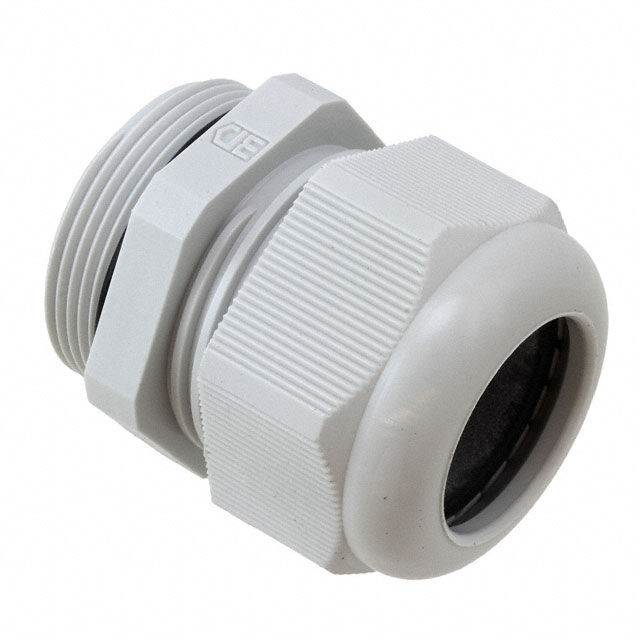

CABLE GLAND 18.01-25MM PG29

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10000700

Active

Bopla Enclosures

CABLE GLAND 18.01-25MM PG29

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10000700

Color	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	0.433 in
Thread Length	11 mm
Thread Size	PG29
Type	Cable Gland

10000 Series

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Color	Type	Ingress Protection	Thread Size	Material	Outside Cable Diameter (Max) [Max] [diameter]	Accessory Type	Features	For Use With/Related Products	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 10000700	0.984 in	25 mm	100 °C	-20 C	0.709 in	18.01 mm	0.433 in	11 mm	Gray	Cable Gland	IP68 - Dust Tight Waterproof	PG29	Polyamide (PA) Nylon
Bopla Enclosures 10000100	0.256 "		100 °C	-20 C	0.118 in	3 mm	0.315 in	8 mm	Gray	Cable Gland	IP68 - Dust Tight Waterproof	PG7	Polyamide (PA) Nylon	6.5 mm
Bopla Enclosures 10000310													Polyethylene		Plug	IP65	BF 11 BoplaFlex Gland
Bopla Enclosures 10000200	0.315 in		100 °C	-20 C			0.315 in	8 mm	Gray	Cable Gland	IP68 - Dust Tight Waterproof	PG9	Polyamide (PA) Nylon	8 mm				0.157 in	4 mm
Bopla Enclosures 10000610													Polyethylene		Plug	IP65	BF 21/MBF 25 BoplaFlex Gland
Bopla Enclosures 10000510													Polyethylene		Plug	IP65	BF 16 BoplaFlex Gland
Bopla Enclosures 10000410													Polyethylene		Plug	IP65	BF 13/MBF 20 BoplaFlex Gland
Bopla Enclosures 10000500			100 °C	-20 C	0.394 in	10 mm	0.394 in	10 mm	Gray	Cable Gland	IP68 - Dust Tight Waterproof	PG16	Polyamide (PA) Nylon							14 mm	0.551 "
Bopla Enclosures 10000110													Polyethylene		Plug	IP65	BF 7/MBF 12 BoplaFlex Gland
Bopla Enclosures 10000400	0.472 in		100 °C	-20 C	0.236 in	6 mm	0.354 in	9 mm	Gray	Cable Gland	IP68 - Dust Tight Waterproof	PG13.5	Polyamide (PA) Nylon	12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.42
		10	$ 3.39
		25	$ 3.06
		50	$ 2.83
		100	$ 2.66

Description

General part information

10000 Series

Cable Gland Polyamide (PA), Nylon PG29 Gray
