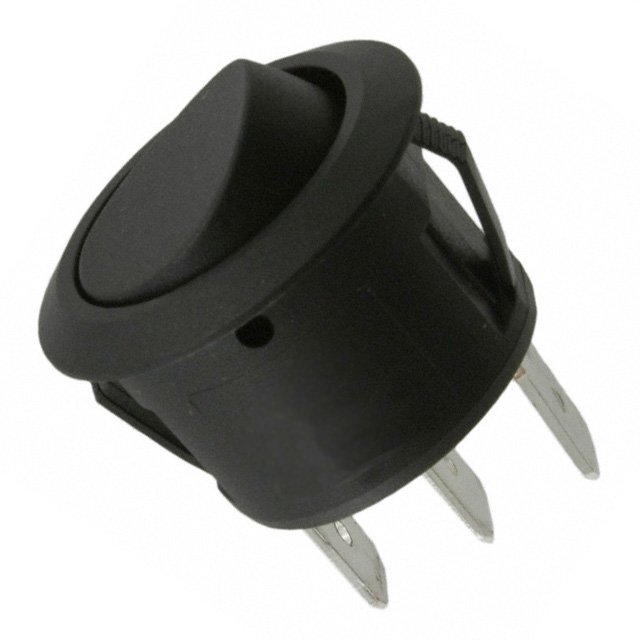

GRB293C01BB

Active

CW Industries

SWITCH ROCKER SPDT 20A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB293C01BB

Actuator Marking	No Marking
Actuator Type	Round
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Termination Style	Color - Actuator/Cap	Switch Function	Mounting Type
CW Industries GRB293C01BB	Round	20 A	125 V	100000 Cycles	-25 °C	85 °C	SPDT	22 mm	No Marking	Quick Connect - 0.250" (6.3mm)	Black	On-On	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 20A (AC) 125 V Panel Mount, Snap-In
