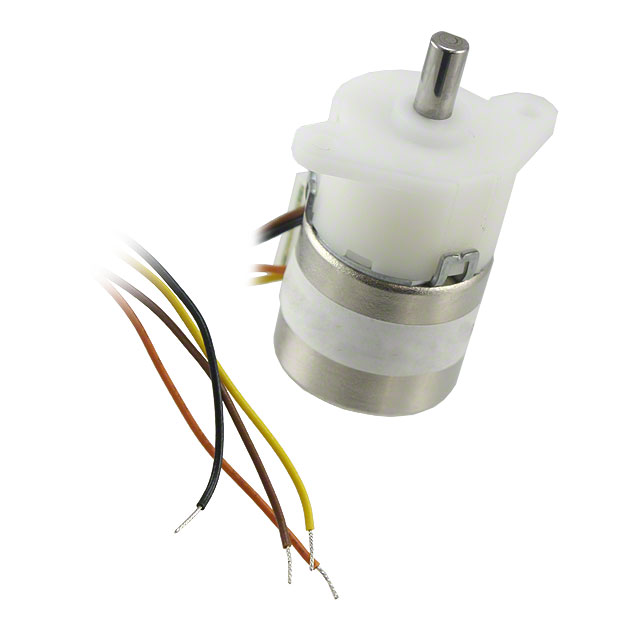

PG20L-D20-HHC0
ActiveNMB TECHNOLOGIES
PG20L-D20-HHC0 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PG20L-D20-HHC0
ActiveNMB TECHNOLOGIES
PG20L-D20-HHC0 ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PG20L-D20-HHC0 |
|---|---|
| Coil Type | Bipolar |
| Current Rating (Amps) | 350 mA |
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Features | Flatted Shaft |
| Length - Shaft and Bearing [x] | 0.394 in |
| Length - Shaft and Bearing [x] | 10 mm |
| Mounting Hole Spacing | 0.984 in |
| Mounting Hole Spacing | 25 mm |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 20 mm |
| Size / Dimension [diameter] | 0.787 in |
| Step Angle | 0.198 ° |
| Steps per Revolution | 1818 |
| Termination Style | Wire Leads |
| Type | Permanent Magnet Gear Motor |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PG20L Series
Bipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 1818.0 Step 350 mA 10VDC
