0396000310

Obsolete

Molex

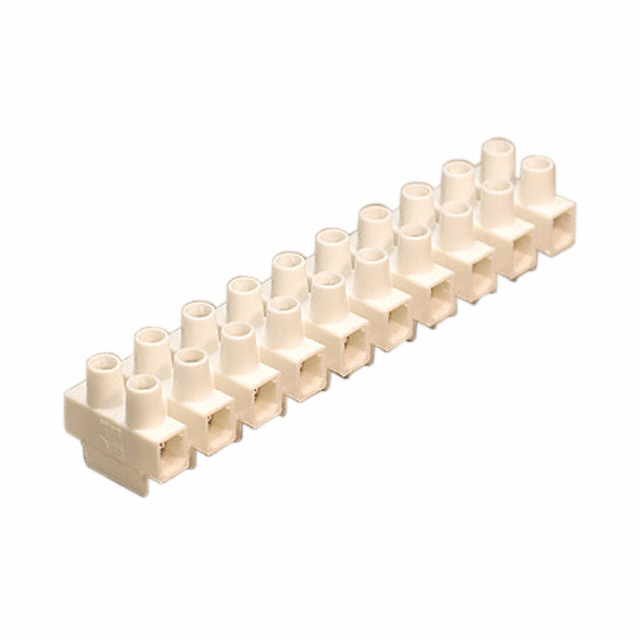

CONN TERM STRIP 10CIRC 0.472"

Search across all available documentation for this part.

Obsolete

Molex

CONN TERM STRIP 10CIRC 0.472"

Technical Specifications

Parameters and characteristics for this part

Specification	0396000310

Barrier Type	Enclosed
Bottom Termination	Closed
Color	White
Current Rating (Amps)	25 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Panel, Chassis
Number of Circuits	10
Number of Rows	2
Number of Wire Entries	20
Operating Temperature	105 C
Pitch [x]	12 mm
Pitch [x]	0.472 in
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	8 AWG

Part	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Mounting Type	Material - Insulation	Material Flammability Rating	Bottom Termination	Barrier Type	Color	Current Rating (Amps)	Number of Circuits	Terminal Screw Material	Terminal Screw Finish	Operating Temperature	Pitch [x]	Pitch [x]	Voltage Rating	Number of Rows	Number of Wire Entries	Terminal Block Type
Molex 0396000310	8 AWG	24 AWG	Screws	Chassis Panel	Polyamide (PA66) Nylon 6/6	UL94 V-2	Closed	Enclosed	White	25 A	10	Steel	Zinc	105 C	12 mm	0.472 in	600 V	2	20	Eurostyle Terminal Strip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Circuit 0.472" (12.00mm) Eurostyle Terminal Strip Connector Screws
