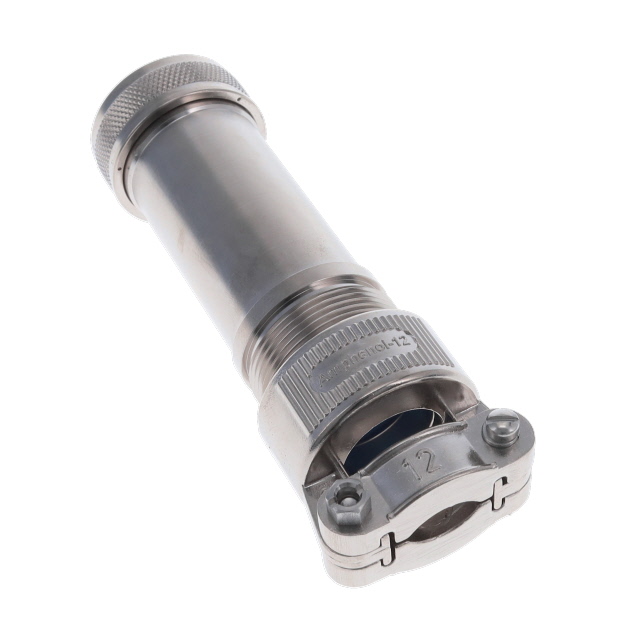

M85049/11-33N

Active

Amphenol Interconnect India

CONN BACKSH W/CLMP SZ20 37 SIL

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN BACKSH W/CLMP SZ20 37 SIL

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/11-33N

Cable Exit	180 °
Cable Opening [custom]	12.7 mm, 19.05 mm
Cable Opening [custom]	0.5 in, 0.75 in
Color	Silver
Diameter - Outside [diameter]	1.345 "
Diameter - Outside [diameter]	34.16 mm
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	37, 20
Shielding	Unshielded
Type	Backshell, Cable Clamp

Part	Type	Ingress Protection	Color	Plating	Cable Exit	Shell Size - Insert	Features	Material	Shielding	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Amphenol Interconnect India M85049/11-33N	Backshell Cable Clamp	Environment Resistant	Silver	Electroless Nickel	180 °	20 37	Clamp Screws	Aluminum Alloy	Unshielded	12.7 mm 19.05 mm	0.5 in 0.75 in	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	1.345 "	34.16 mm
Amphenol Interconnect India M85049/11-135Z	Backshell Cable Clamp	Environment Resistant	Black	Zinc Cobalt	180 °	40	Clamp Screws	Aluminum Alloy	Unshielded			MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	2.72 "	69.09 mm
Amphenol Interconnect India M85049/11-153Z	Backshell Cable Clamp	Environment Resistant	Black	Zinc Cobalt	180 °	16 19	Clamp Screws	Aluminum Alloy	Unshielded			MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	1.11 in	28.19 mm	0.13 in	0.31 in	3.3 mm	7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Connector Backshell, Cable Clamp 20, 37
