CF10-10-18

Active

Igus

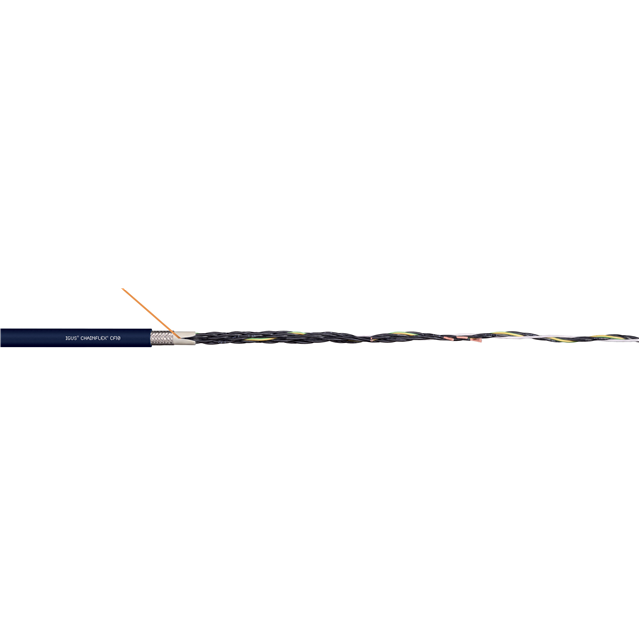

CABLE 18CON 17AWG BLUE SHLD FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF10-10-18

Active

Igus

CABLE 18CON 17AWG BLUE SHLD FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CF10-10-18

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Features	Abrasion Resistant, Rip Cord, Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	15.49 mm
Jacket (Insulation) Diameter [diameter]	0.61 "
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Blue
Length	Enter Number of Feet in Order Quantity
Number of Conductors	18
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
Usage	Industrial, Control
Voltage	500 V
Wire Gauge	17 AWG

CF10 Series

Part	Usage	Shield Type	Conductor Insulation	Features	Jacket (Insulation) Material	Wire Gauge	Number of Conductors	Conductor Material	Jacket Color	Cable Type	Length	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Shield Material	Spool Size	Spool Size
Igus CF10-UL-10-05	Industrial Control	Braid Foil	Thermoplastic Elastomer (TPE)	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Thermoplastic Elastomer (TPE)	17 AWG	5	Copper Bare	Gray	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	10.49 mm	0.413 in	1000 V	Aluminum Copper Tinned
Igus CF10-UL-10-04	Industrial Control	Braid Foil	Thermoplastic Elastomer (TPE)	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Thermoplastic Elastomer (TPE)	17 AWG	4	Copper Bare	Gray	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	10.01 mm	0.394 in	1000 V	Aluminum Copper Tinned
Igus CF10-UL-10-03	Industrial Control	Braid Foil	Thermoplastic Elastomer (TPE)	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Thermoplastic Elastomer (TPE)	17 AWG	3	Copper Bare	Gray	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	8.99 mm	0.354 in	1000 V	Aluminum Copper Tinned
Igus CF10-01-12	Industrial Control	Braid	Thermoplastic Elastomer (TPE)	Abrasion Resistant Oil Resistant Rip Cord UV Resistant	Thermoplastic Elastomer (TPE)	26 AWG	12	Copper Bare	Blue	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %			500 V	Aluminum Copper Tinned	1000 ft	304.8 m
Igus CF10-10-18	Industrial Control	Braid	Thermoplastic Elastomer (TPE)	Abrasion Resistant Oil Resistant Rip Cord UV Resistant	Thermoplastic Elastomer (TPE)	17 AWG	18	Copper Bare	Blue	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	15.49 mm	0.61 "	500 V	Aluminum Copper Tinned
Igus CF10-05-18	Industrial Control	Braid Foil	Thermoplastic Elastomer (TPE)	Abrasion Resistant Oil Resistant Rip Cord UV Resistant	Thermoplastic Elastomer (TPE)	20 AWG	18	Copper Bare	Blue	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	13.49 mm	0.531 in	500 V	Aluminum Copper Tinned
Igus CF10-UL-07-05	Industrial Control	Braid Foil	Thermoplastic Elastomer (TPE)	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Thermoplastic Elastomer (TPE)	18 AWG	5	Copper Bare	Gray	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	10.01 mm	0.394 in	1000 V	Aluminum Copper Tinned
Igus CF10-UL-05-12	Industrial Control	Braid Foil	Thermoplastic Elastomer (TPE)	Abrasion Resistant Flame Retardant Oil Resistant Rip Cord	Thermoplastic Elastomer (TPE)	20 AWG	12	Copper Bare	Gray	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	13.01 mm	0.512 in	1000 V	Aluminum Copper Tinned
Igus CF10-10-03	Industrial Control	Braid	Thermoplastic Elastomer (TPE)	Abrasion Resistant Oil Resistant Rip Cord UV Resistant	Thermoplastic Elastomer (TPE)	17 AWG	3	Copper Bare	Blue	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %	7.49 mm	0.295 in	500 V	Aluminum Copper Tinned
Igus CF10-10-04	Industrial Control	Braid	Thermoplastic Elastomer (TPE)	Abrasion Resistant Oil Resistant Rip Cord UV Resistant	Thermoplastic Elastomer (TPE)	17 AWG	4	Copper Bare	Blue	Multi-Conductor	Enter Number of Feet in Order Quantity	90 % 100 %			500 V	Aluminum Copper Tinned

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.33
		100	$ 17.60
		500	$ 16.90
		1000	$ 14.75

Description

General part information

CF10 Series

18 Conductor Multi-Conductor Cable Blue 17 AWG Braid Enter Number of Feet in Order Quantity
