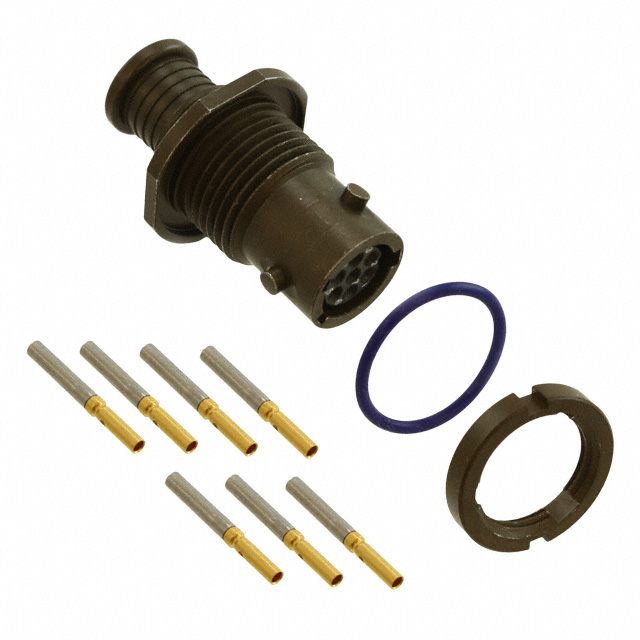

MKJ3A7W6-7SN

Active

ITT Cannon, LLC

CONN RCPT FMALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT FMALE 7POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MKJ3A7W6-7SN

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	7
Shell Size - Insert [Min]	6
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

...

Part	Ingress Protection	Contact Finish - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Applications	Contact Material	Color	Number of Positions	Connector Type	Insert Material	Fastening Type	Mounting Type	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Current Rating (Amps)	Shielding	Shell Finish	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Voltage Rating	Mounting Feature
ITT Cannon, LLC MKJ3A6F6-7SY
ITT Cannon, LLC MKJ3A7W6-7SY
ITT Cannon, LLC MKJ3A6Z7-10SN	Environment Resistant	Gold	Crimp	-65 ░C	347 °F	Metal	Aerospace Communication Systems Industrial Instrumentation Medical	Copper Alloy	Black	10	Female Sockets Plug	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	Aluminum Alloy	1.27 µm	50 µin	N	5 A	Shielded	Black Zinc Nickel
ITT Cannon, LLC MKJ3A6W7-10PX
ITT Cannon, LLC MKJ3A7F6-4SZ
ITT Cannon, LLC MKJ3A7F10-26SY
ITT Cannon, LLC MKJ3A7W6-7SN	Environment Resistant	Gold	Crimp	-55 °C	150 °C	Metal			Olive Drab	7	Receptacle Female Sockets		Bayonet Lock		Aluminum Alloy	1.27 µm	50 µin	N	5 A	Shielded	Olive Drab Cadmium	7	6	500 VAC	Bulkhead - Front Side Nut
ITT Cannon, LLC MKJ3A7W6-7SX
ITT Cannon, LLC MKJ3A7W9-19PZ
ITT Cannon, LLC MKJ3A6F8-13PX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Crimp
