897-43-004-90-000000

Active

Mill-Max Manufacturing Corp.

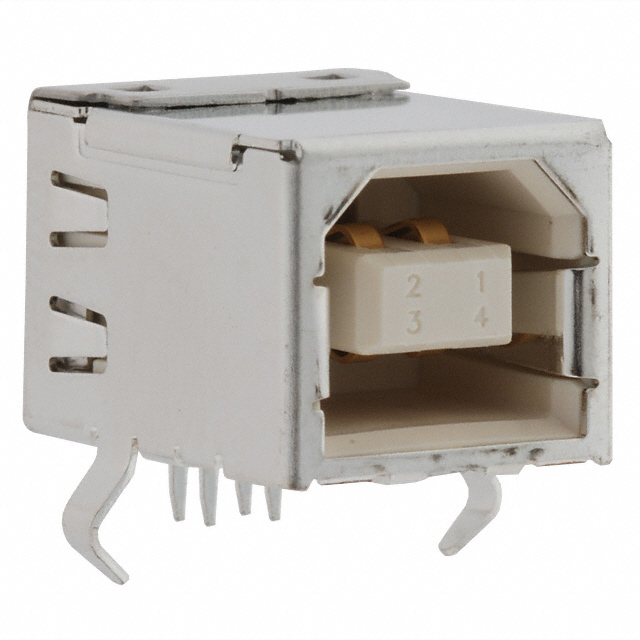

CONN RCPT USB2.0 TYPEB 4POS R/A

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN RCPT USB2.0 TYPEB 4POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	897-43-004-90-000000

Connector Type	USB-B
Contact Finish	Gold
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Shell/Shielding Material	Number of Ports	Termination	Connector Type	Material Flammability Rating	Shielding	Mounting Feature	Number of Contacts [custom]	Specifications	Mounting Type	Mating Cycles	Contact Finish	Voltage - Rated	Gender
Mill-Max Manufacturing Corp. 897-43-004-90-000000	Stainless Steel	1	Solder	USB-B	UL94 V-0	Shielded	Horizontal	4	USB 2.0	Through Hole Right Angle	1500	Gold	30 VAC	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
