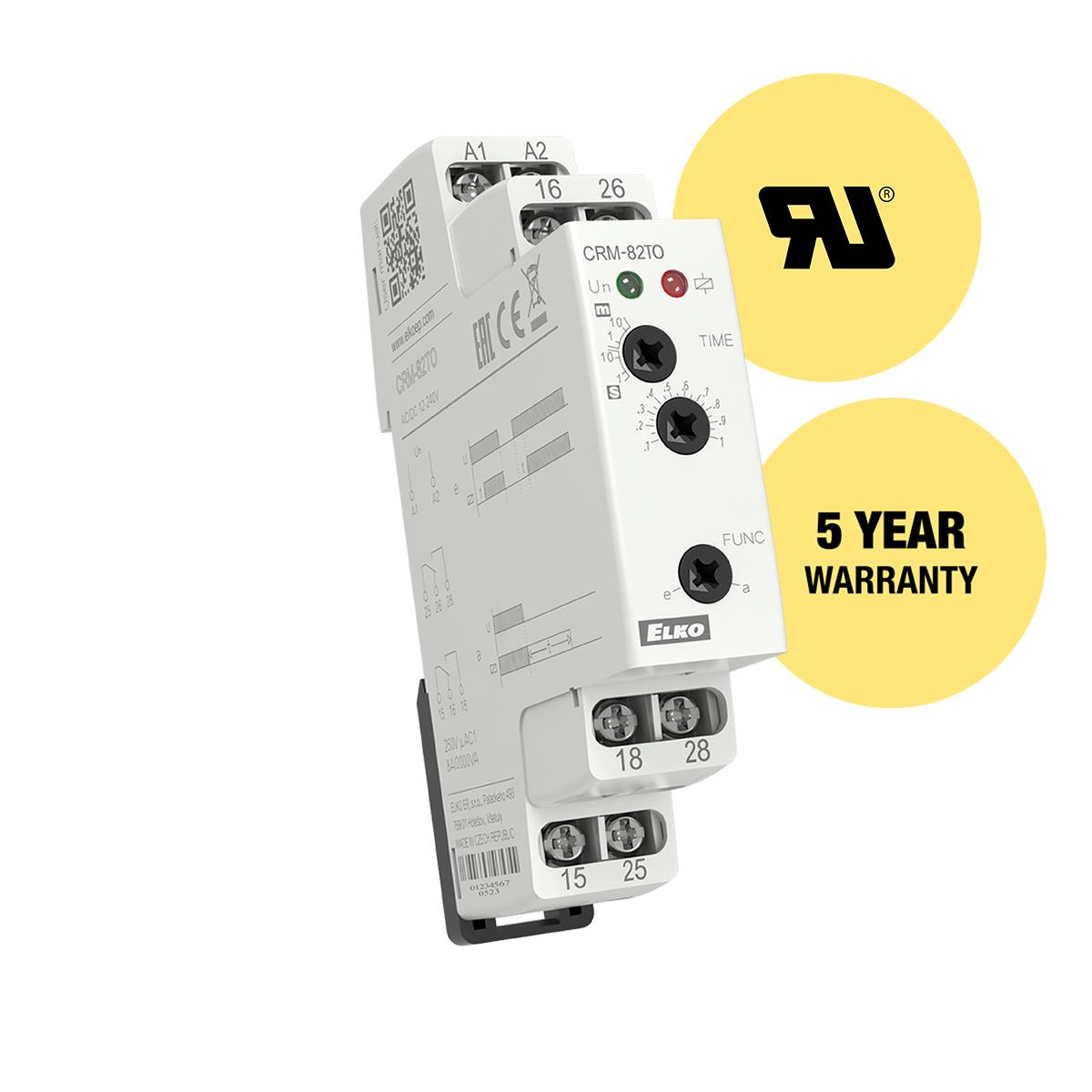

CRM-82TO
ActiveAim Dynamics
OFF DELAY DPDT 8A@250VAC/24VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRM-82TO |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 8 A, 24 VDC, 250 VAC |
| Delay Time [Max] | 10 Min |
| Delay Time [Min] | 0.1 Min |
| Function | Off-Delay |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 12 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 80.80 | |
Description
General part information
CRM-82 Series
Off-Delay Time Delay Relay DPDT (2 Form C) 0.1 Min ~ 10 Min Delay 8A @ 250VAC/24VDC DIN Rail
Documents
Technical documentation and resources
No documents available
