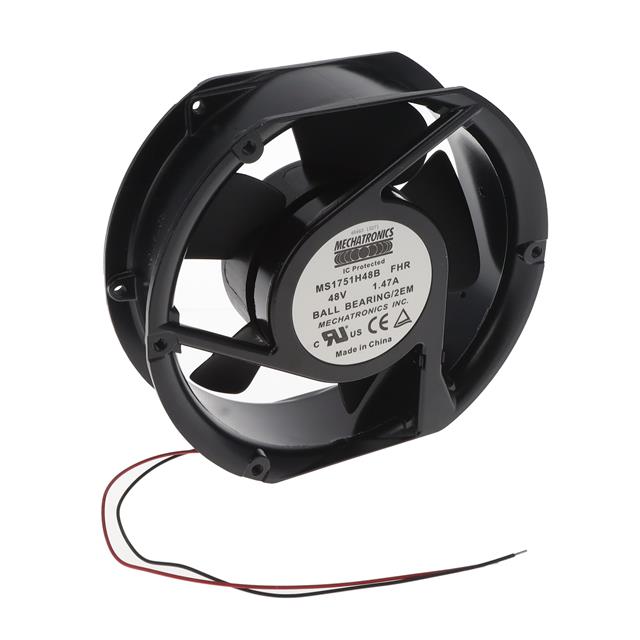

MS1751H48B-FHR-2EM

Active

Mechatronics Bearing Group

FAN AXIAL 171X51.5MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet

MS1751H48B-FHR-2EM

Active

Mechatronics Bearing Group

FAN AXIAL 171X51.5MM 48VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS1751H48B-FHR-2EM

Air Flow	11.7 m³/min
Air Flow	418 CFM
Bearing Type	Ball
Current Rating (Amps)	1.56 A
Fan Type	Tubeaxial
Features	Auto Restart
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	71 dB(A)
RPM	5500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171 mm
Size / Dimension [z]	153 mm
Static Pressure	1.64 in H2O
Static Pressure	408.5 Pa
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Weight	670 g
Weight	1.5 lb
Width [y]	51.5 mm

MS1751 Series

Part	Material - Blade	Features	Material - Frame	RPM	Noise	Bearing Type	Weight	Weight	Current Rating (Amps)	Width [y]	Ingress Protection	Voltage - Rated	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	Fan Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Termination	Voltage - Rated [custom]
Mechatronics Bearing Group MS1751L12B-FHR-2EM	Plastic	Auto Restart	Aluminum	3000 RPM	53 dB	Ball	670 g	1.5 lb	1.22 A	51.5 mm	IP68 - Dust Tight Waterproof	12 VDC	171 mm	Rectangular/Rounded	153 mm	Tubeaxial	5.16 m³/min	184.4 CFM	156.9 Pa	0.63 in H2O	2 Wire Leads
Mechatronics Bearing Group MS1751H12B1+6-FHR	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	Aluminum	5500 RPM	71 dB(A)	Ball	670 g	1.5 lb	6.3 A	51.5 mm		12 VDC	171 mm	Rectangular/Rounded	153 mm	Tubeaxial	11.7 m³/min	418 CFM	408.5 Pa	1.64 in H2O	4 Wire Leads
Mechatronics Bearing Group MS1751H48B-FHR-2EM	Plastic	Auto Restart	Aluminum	5500 RPM	71 dB(A)	Ball	670 g	1.5 lb	1.56 A	51.5 mm	IP68 - Dust Tight Waterproof		171 mm	Rectangular/Rounded	153 mm	Tubeaxial	11.7 m³/min	418 CFM	408.5 Pa	1.64 in H2O	2 Wire Leads	48 VDC
Mechatronics Bearing Group MS1751L48B1+6-FHR	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	Aluminum	3000 RPM	53 dB	Ball	670 g	1.5 lb	0.28 A	51.5 mm			171 mm	Rectangular/Rounded	153 mm	Tubeaxial	5.16 m³/min	184.4 CFM	156.9 Pa	0.63 in H2O	4 Wire Leads	48 VDC
Mechatronics Bearing Group MS1751L24B-FHR-2EM	Plastic	Auto Restart	Aluminum	3000 RPM	53 dB	Ball	670 g	1.5 lb	0.52 A	51.5 mm	IP68 - Dust Tight Waterproof	24 VDC	171 mm	Rectangular/Rounded	153 mm	Tubeaxial	5.16 m³/min	184.4 CFM	156.9 Pa	0.63 in H2O	2 Wire Leads
Mechatronics Bearing Group MS1751H24B1+6-FHR-2EM	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	Aluminum	5500 RPM	71 dB(A)	Ball	670 g	1.5 lb	3.1 A	51.5 mm	IP68 - Dust Tight Waterproof	24 VDC	171 mm	Rectangular/Rounded	153 mm	Tubeaxial	11.7 m³/min	418 CFM	408.5 Pa	1.64 in H2O	4 Wire Leads
Mechatronics Bearing Group MS1751L24B1+6-FHR-2EM	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	Aluminum	3000 RPM	53 dB	Ball	670 g	1.5 lb	0.52 A	51.5 mm	IP68 - Dust Tight Waterproof	24 VDC	171 mm	Rectangular/Rounded	153 mm	Tubeaxial	5.16 m³/min	184.4 CFM	156.9 Pa	0.63 in H2O	4 Wire Leads
Mechatronics Bearing Group MS1751M12B1+6-FHR	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	Aluminum	4500 RPM		Ball	670 g	1.5 lb	3.75 A	51.5 mm		12 VDC	171 mm	Rectangular/Rounded	153 mm	Tubeaxial	9.86 m³/min	352.1 CFM	249.1 Pa	1 in H2O	4 Wire Leads
Mechatronics Bearing Group MS1751L48B-FHR-2EM	Plastic	Auto Restart	Aluminum	3000 RPM	53 dB	Ball	670 g	1.5 lb	0.28 A	51.5 mm	IP68 - Dust Tight Waterproof		171 mm	Rectangular/Rounded	153 mm	Tubeaxial	5.16 m³/min	184.4 CFM	156.9 Pa	0.63 in H2O	2 Wire Leads	48 VDC
Mechatronics Bearing Group MS1751M24B-FHR	Plastic	Auto Restart	Aluminum	4500 RPM		Ball	670 g	1.5 lb	1.85 A	51.5 mm		24 VDC	171 mm	Rectangular/Rounded	153 mm	Tubeaxial	9.86 m³/min	352.1 CFM	249.1 Pa	1 in H2O	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.62
		10	$ 55.83
		25	$ 53.33
		50	$ 51.52
		100	$ 49.76

Description

General part information

MS1751 Series

Fan Tubeaxial 48VDC Rectangular/Rounded - 171mm L x 153mm H Ball 418.0 CFM (11.70m³/min) 2 Wire Leads
